Remote Diagnostics Tool
Donate via Paypal

v34

(31/03/2025)

Desktop Administrators and Helpdesk staff will benefit from using this Microsoft Windows Remote Diagnostics Tool

This remote diagnostics tool (RDT) was designed to aid in the "diagnostics" and "investigation" of a remote PC whilst it is on a network

No Installation Required! Run on any PC or Server with DOT.NET 4 installed (Windows 2K/XP/7/8/10/11 , Server 2003/2008/2012/2016/2019)

Download RDT here... - FREE TO USE AND DISTRIBUTE, But any donations welcome to support future versions!

This tool Encrypts every “Windows management connection” and every “Powershell connection” so your “Admin Credentials” stay safe across the network!



RDT INCLUDES THE FOLLOWING FEATURES

Active Directory - Read (groups / users)
IP Address Lookup
SCCM Re-Run of Adverts
APP-V 4.x Support
Last bootup time
SCCM Client Tools (All functions)
APP-V 5.x Support
Logon Server Test
Search for an Installed Program
Antivirus check
.NET Core Runtime and .Net Framework 1-4 Detection
Security Groups
Automatic online checking (ping)
Network Card report
Services control
BIOS report
Powershell Invoke Command Button
Shadow Users Desktop (RDP) to aid fault resolution
Detailed process report
PowerShell Session as you
Startup Items viewer
Drive Information
Programs and Features
Store Apps report
FAST - Builtin Remote Registry Editor
Processor usage %
Terminal Server support - List User/Users logged on
EXPORT to CSV functionality
Quick PC ping test
User settings report
File Associations
Remotely Defrag the C Drive
Video card driver report
Import PC's from file
SCCM History list
WIM-3rd Party Drivers report
InApp Screen Capture
SCCM Advert list (Machine)
WIM-Optional Features report
Install & Remove software
SCCM Advert list (User)
Windows Updates removal tool
SCCM - Missing KB Patches
SCCM - Installed KB Patches
Microsoft Baseline Security Analyzer Report (MBSA)
SCCM - Policy & Compliance Test
Reboot Detection
Audio driver report

Read HP BIOS Settings




SCREENSHOTS OF RDT IN USE

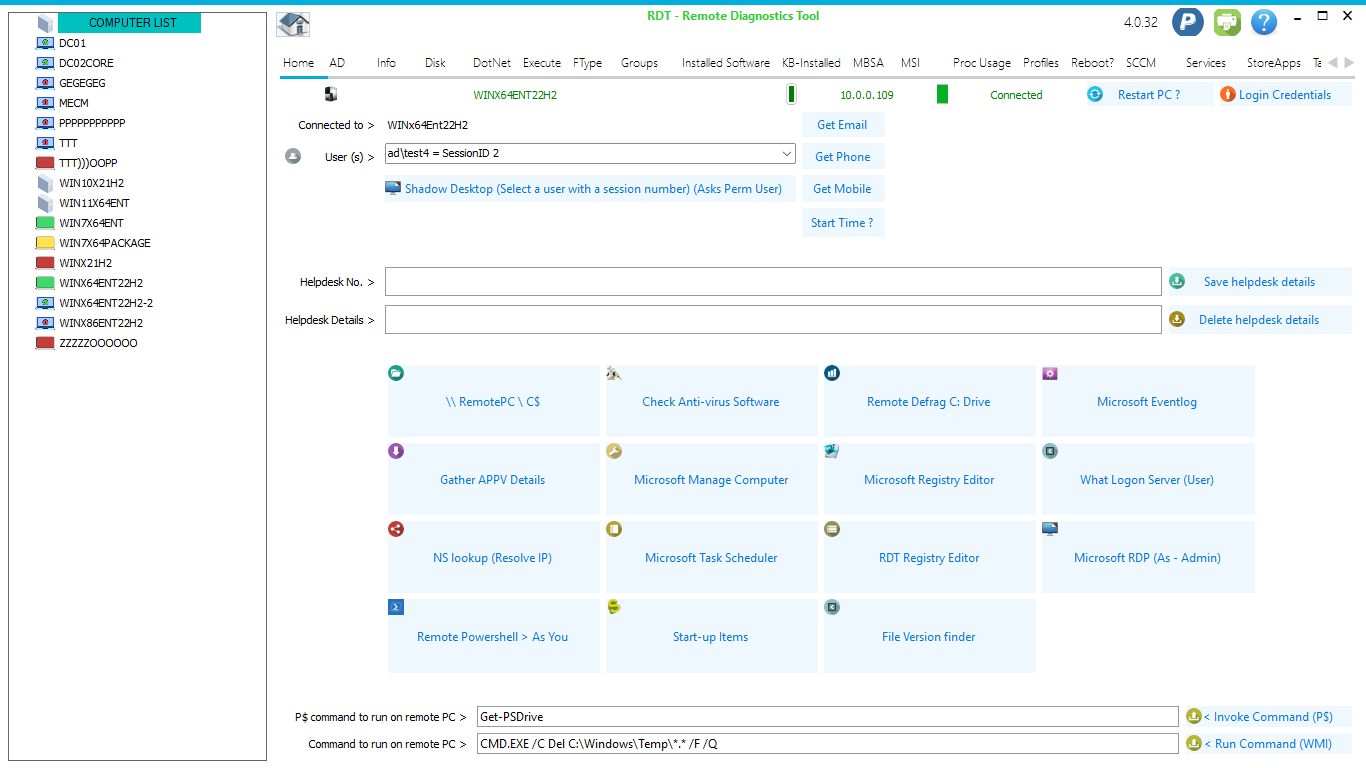

Start Page (Begin / Home)

Screen1

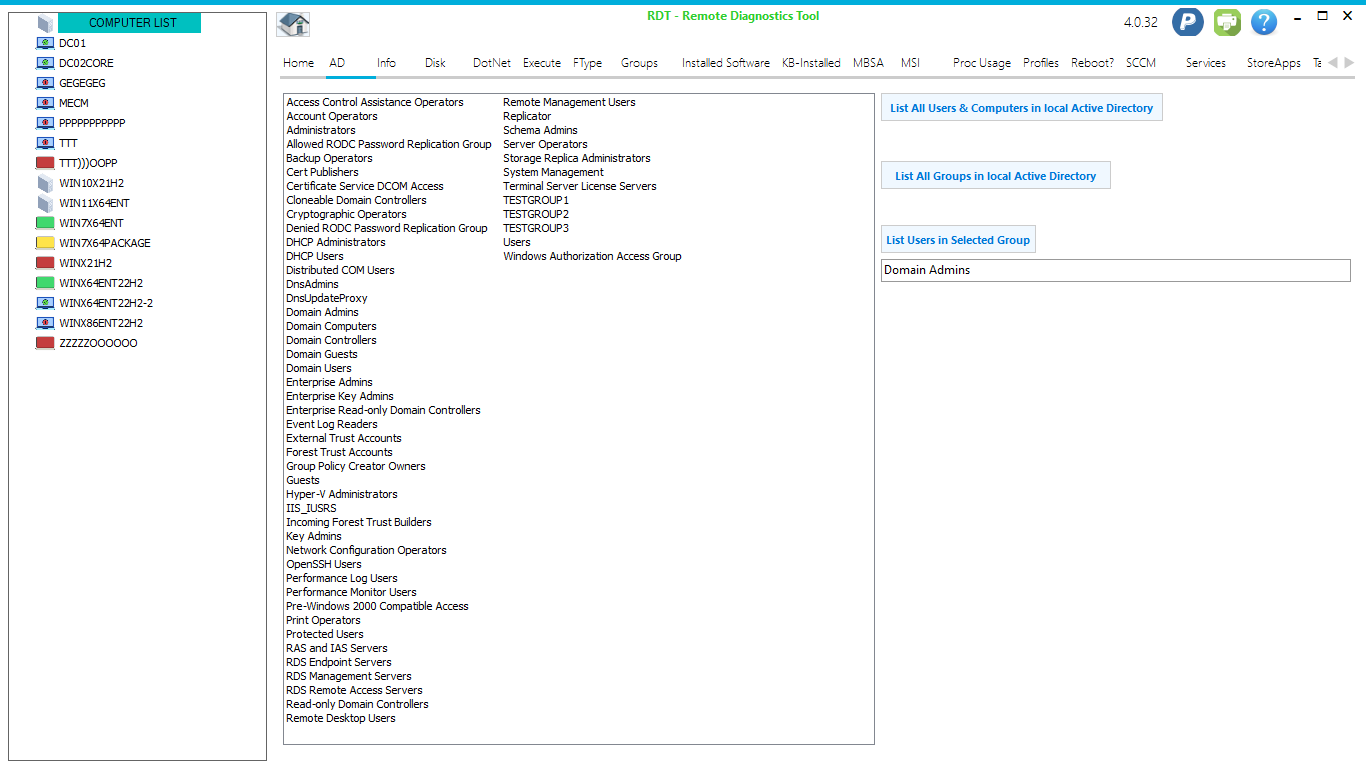

Active Directory

Screen18

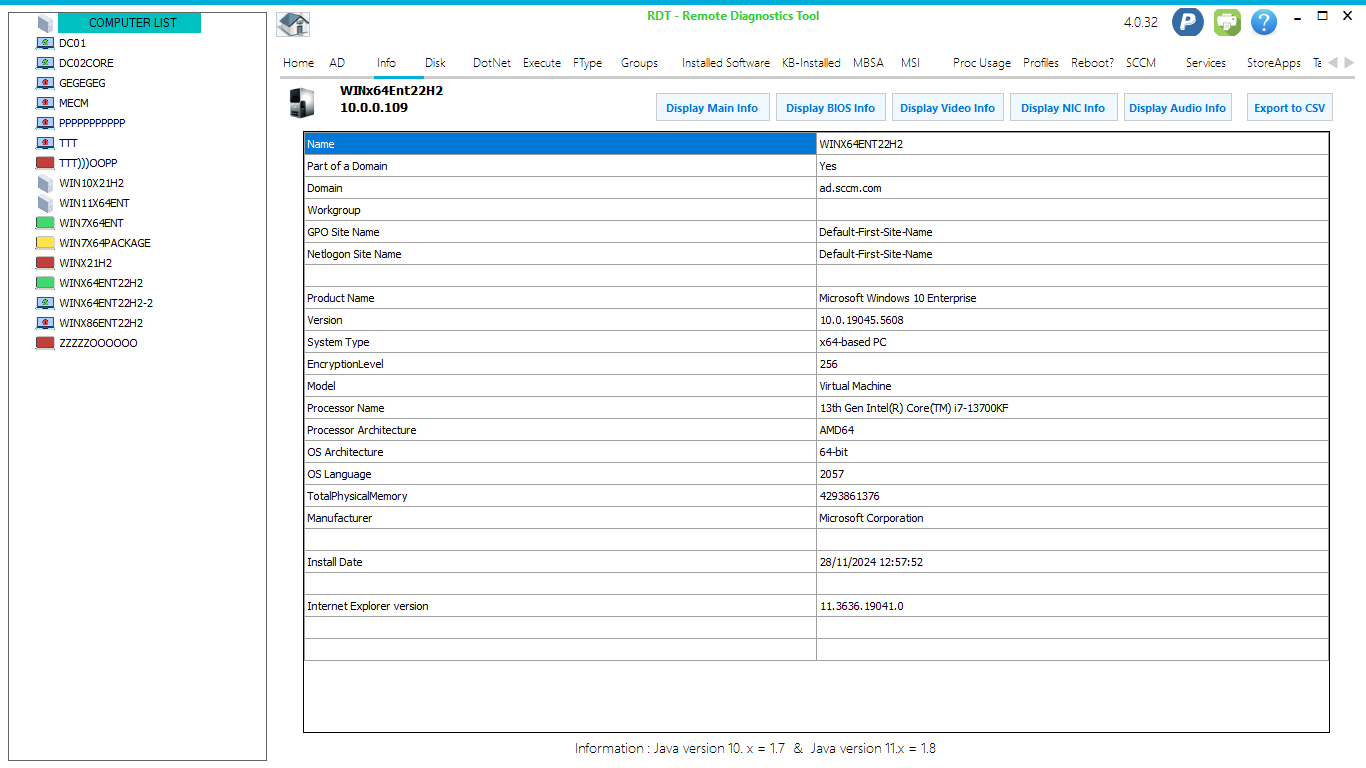

Machine Information

Screen2

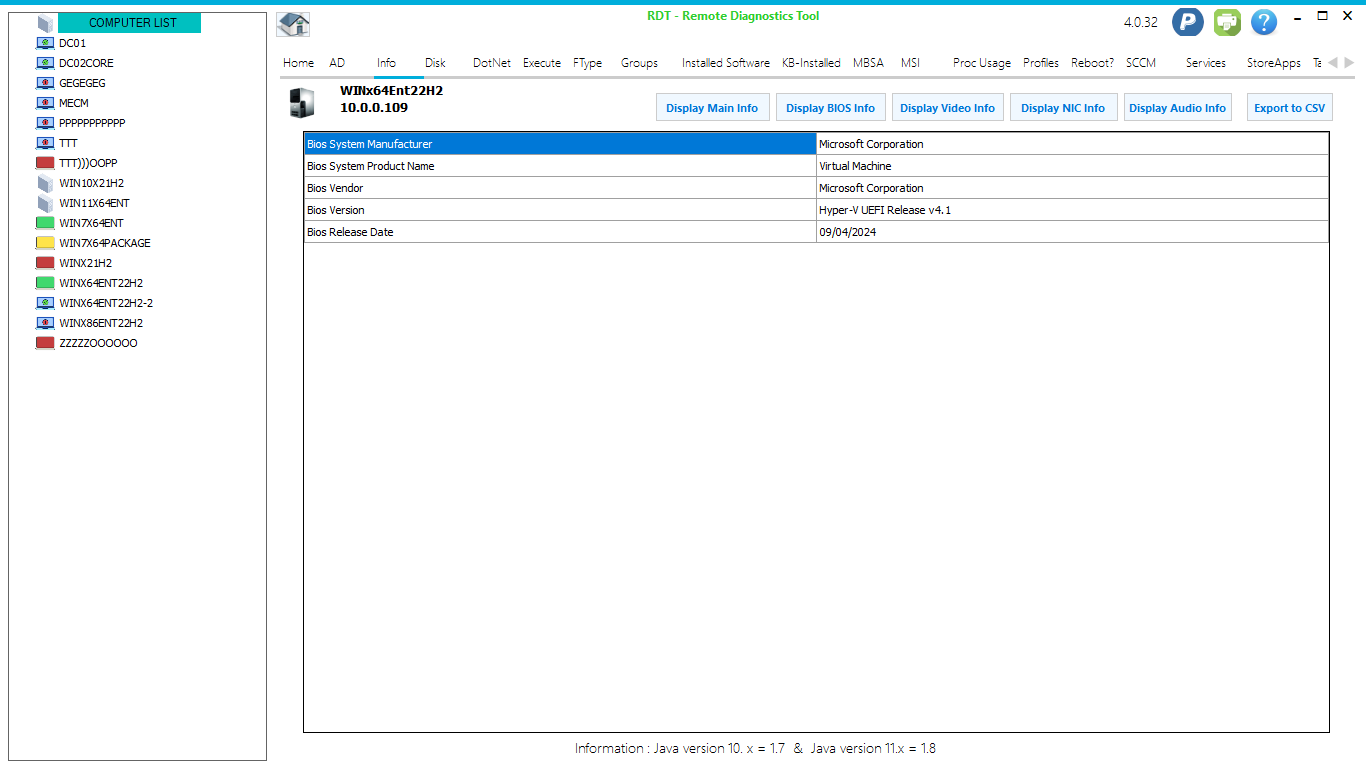

Bios Information

Video Card Information

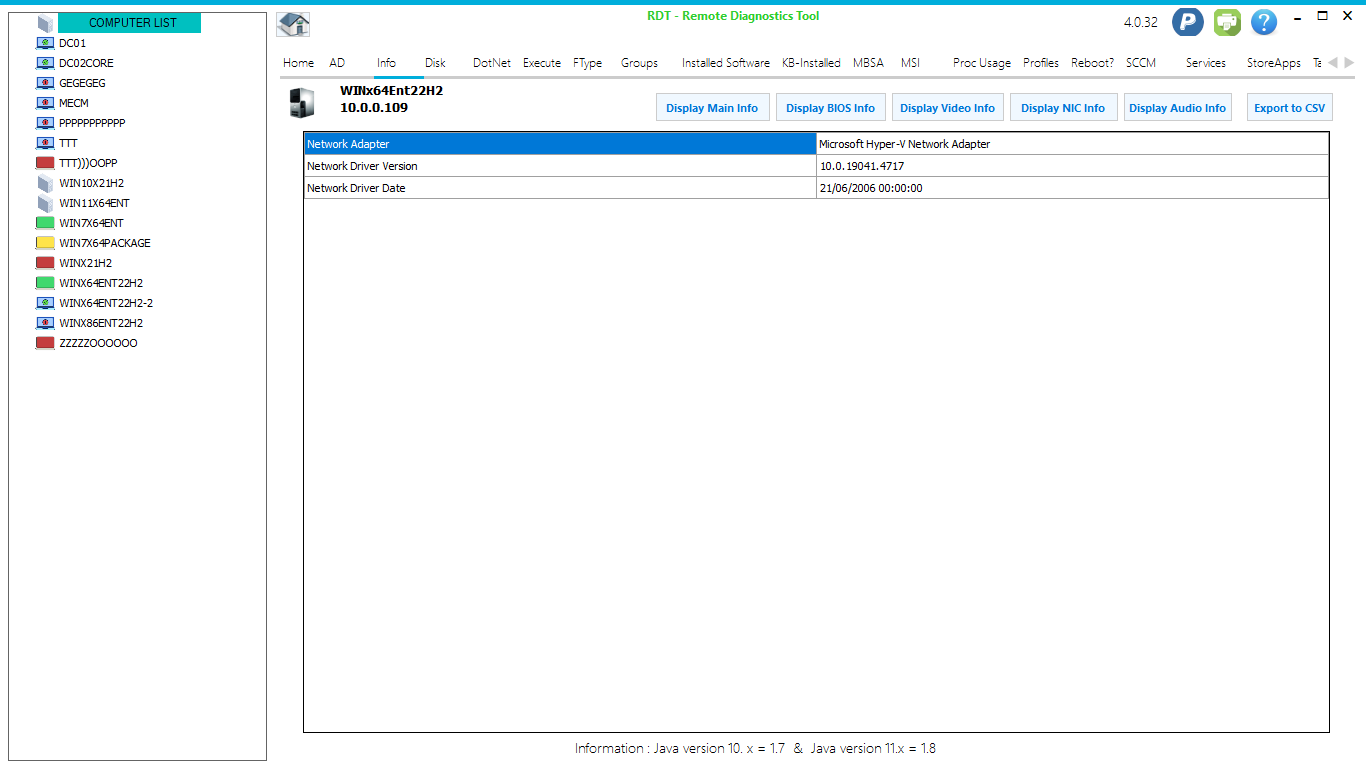

Network Card Information

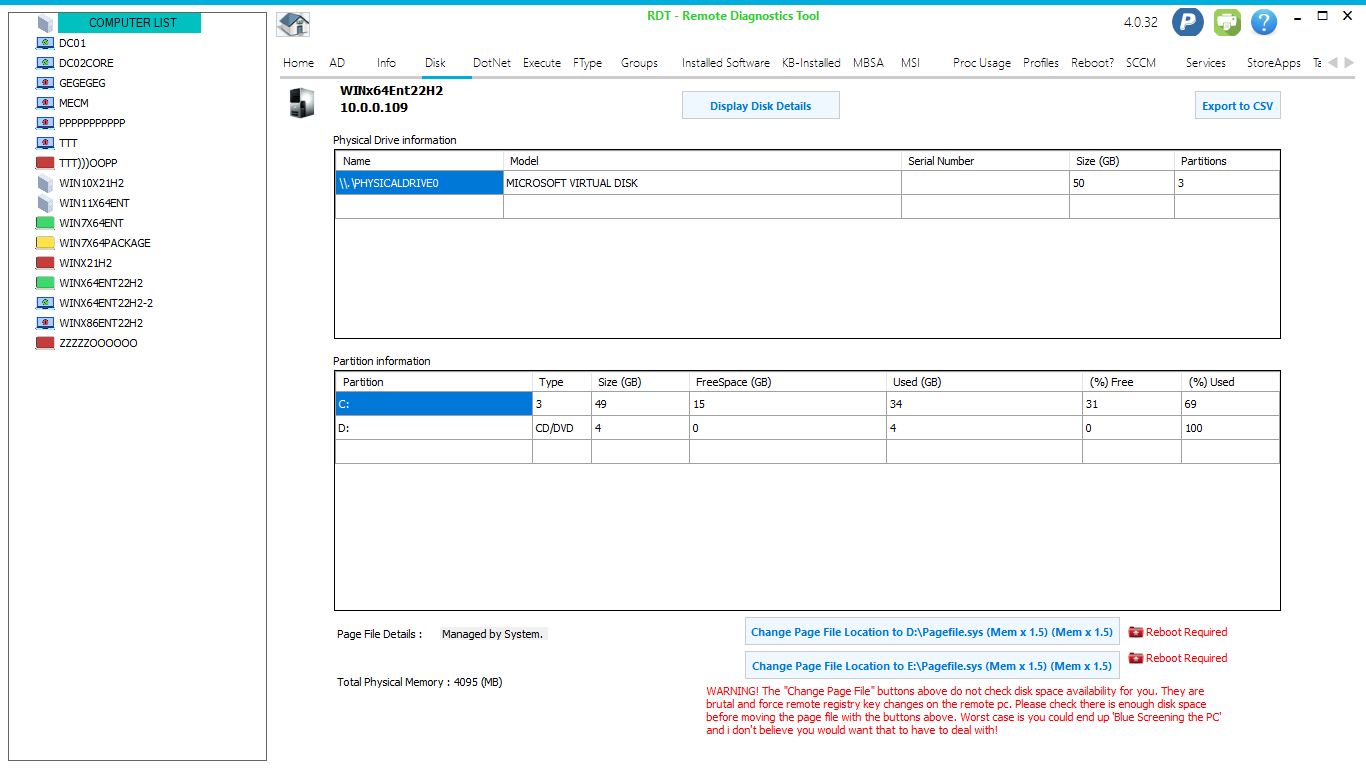

Disk Information

Screen3

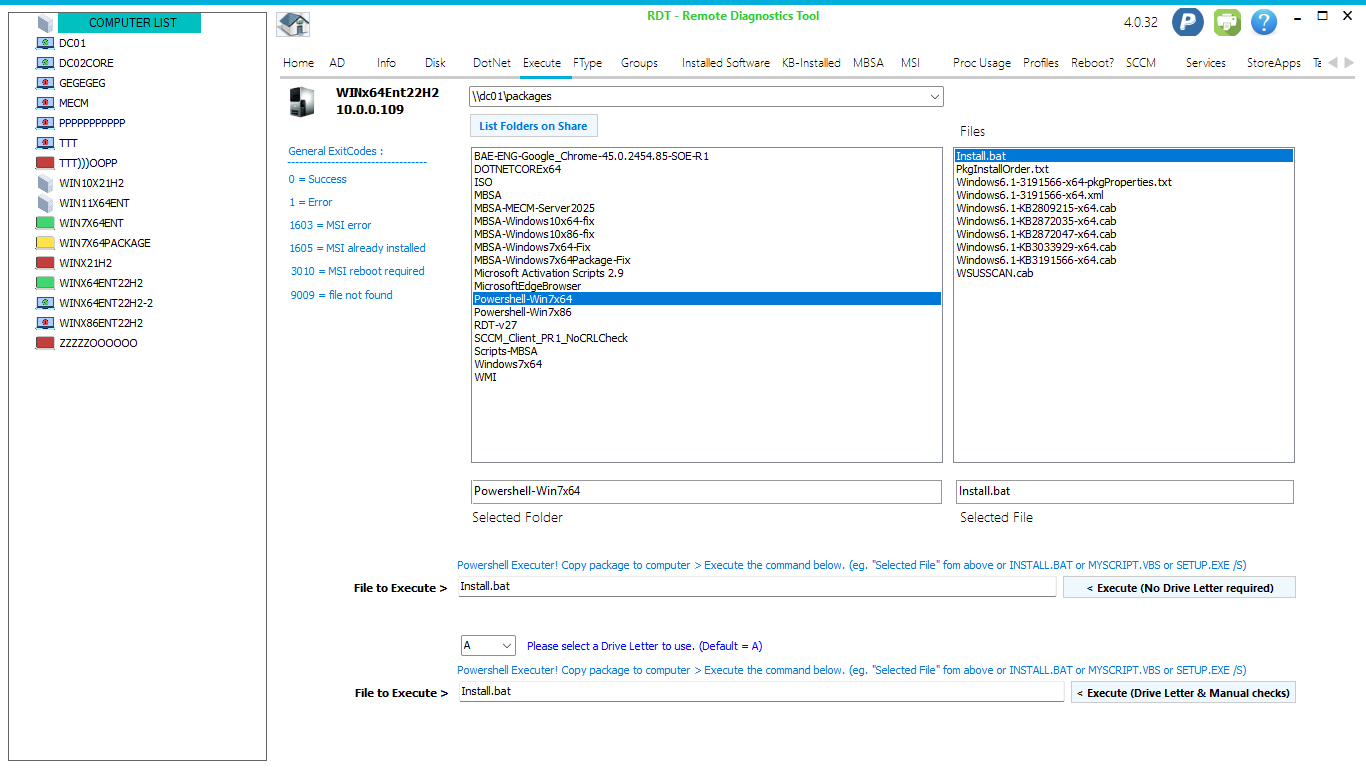

Install / Remove Software packages

Screen4

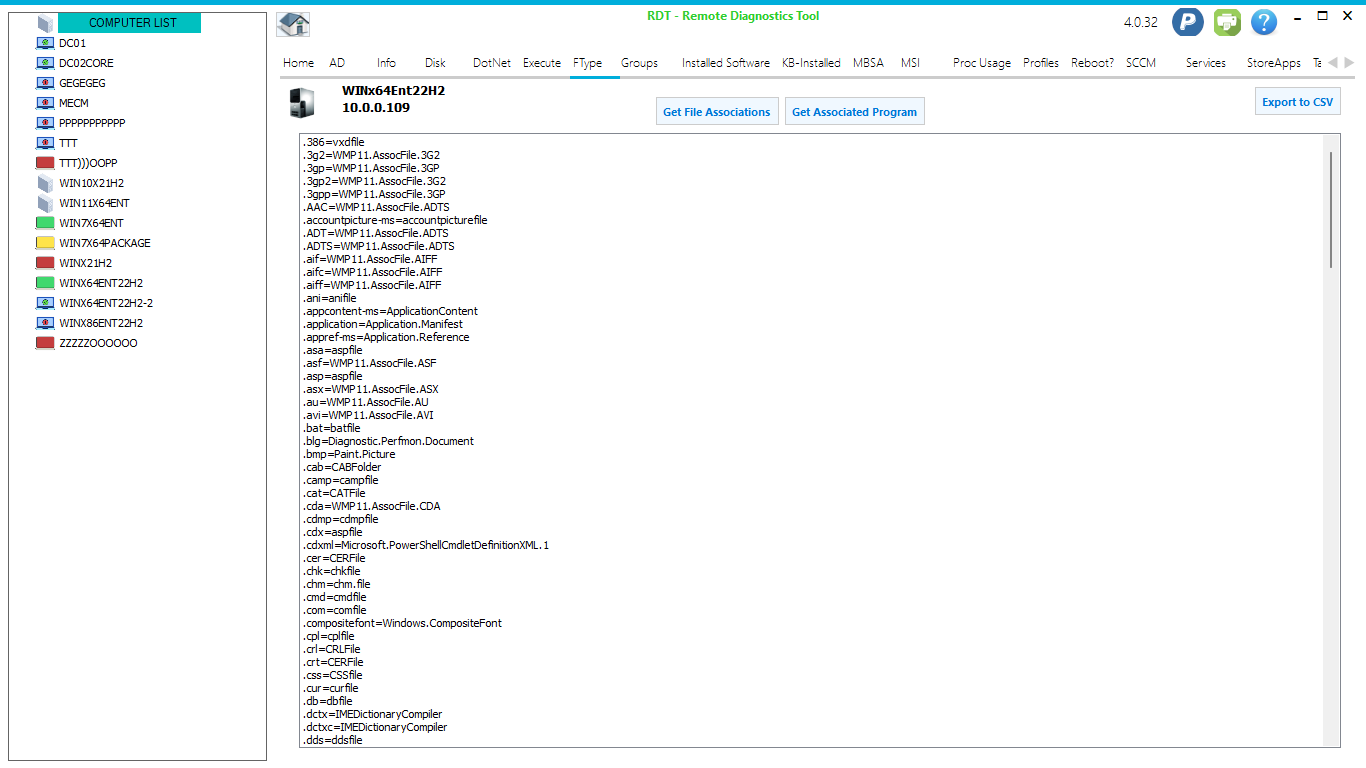

FileTypes Report

Screen5

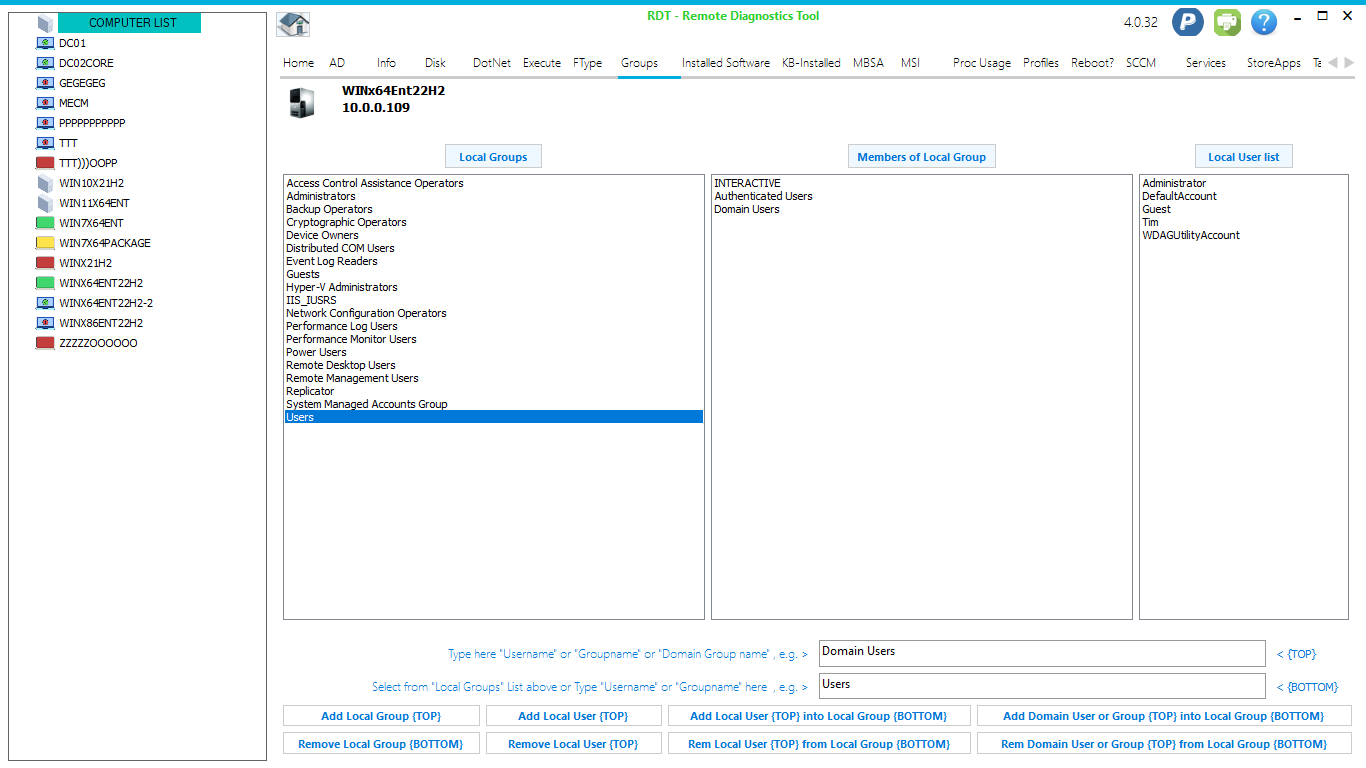

Local Security Groups

Screen6

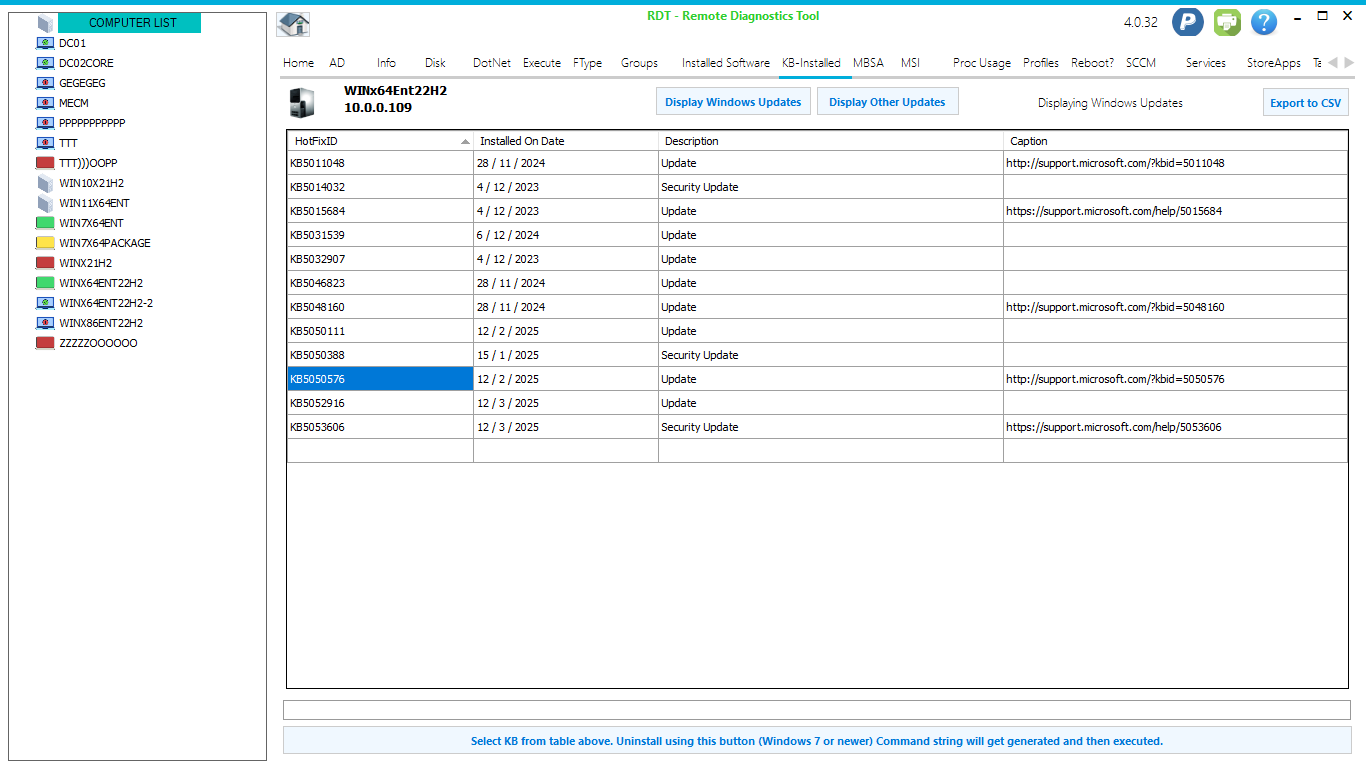

Windows Patches Report

Screen7

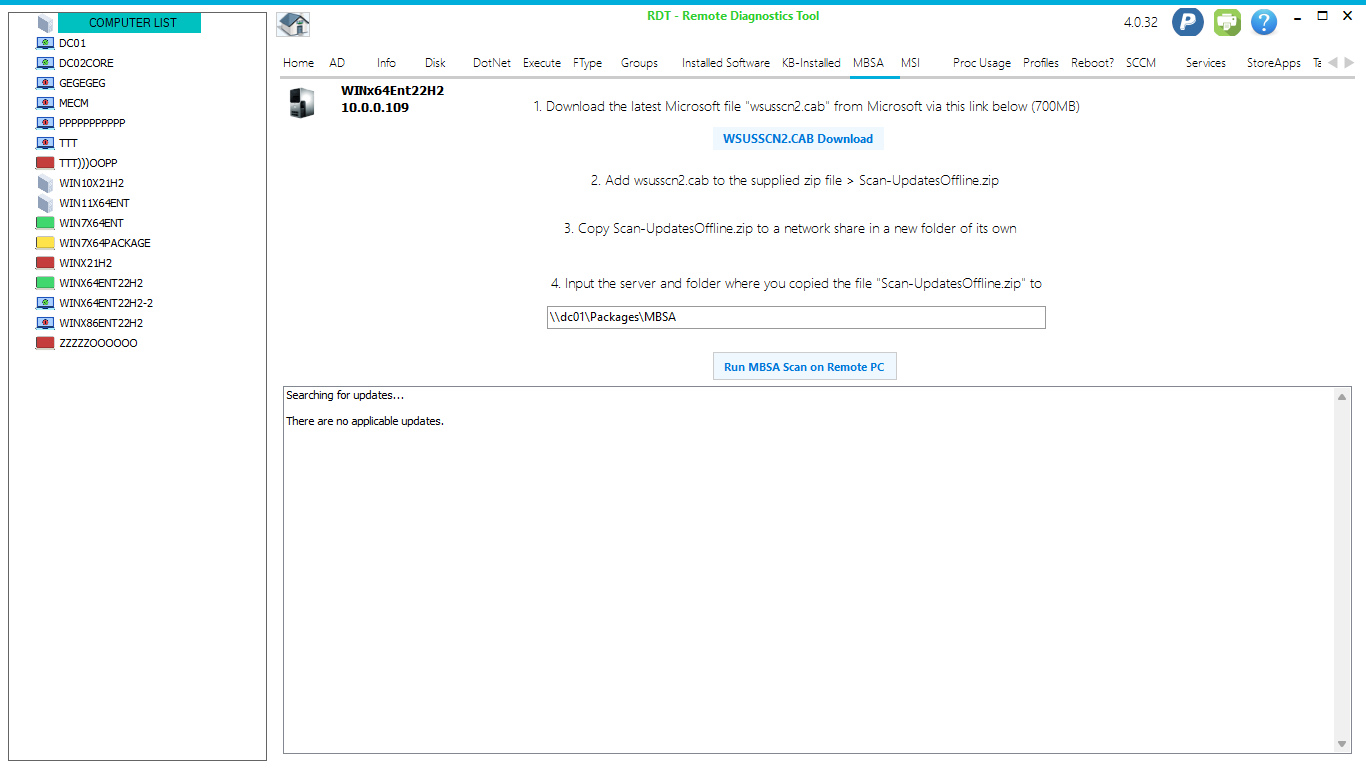

Microsoft Baseline Security Analyzer Report (MBSA)

Screen8c

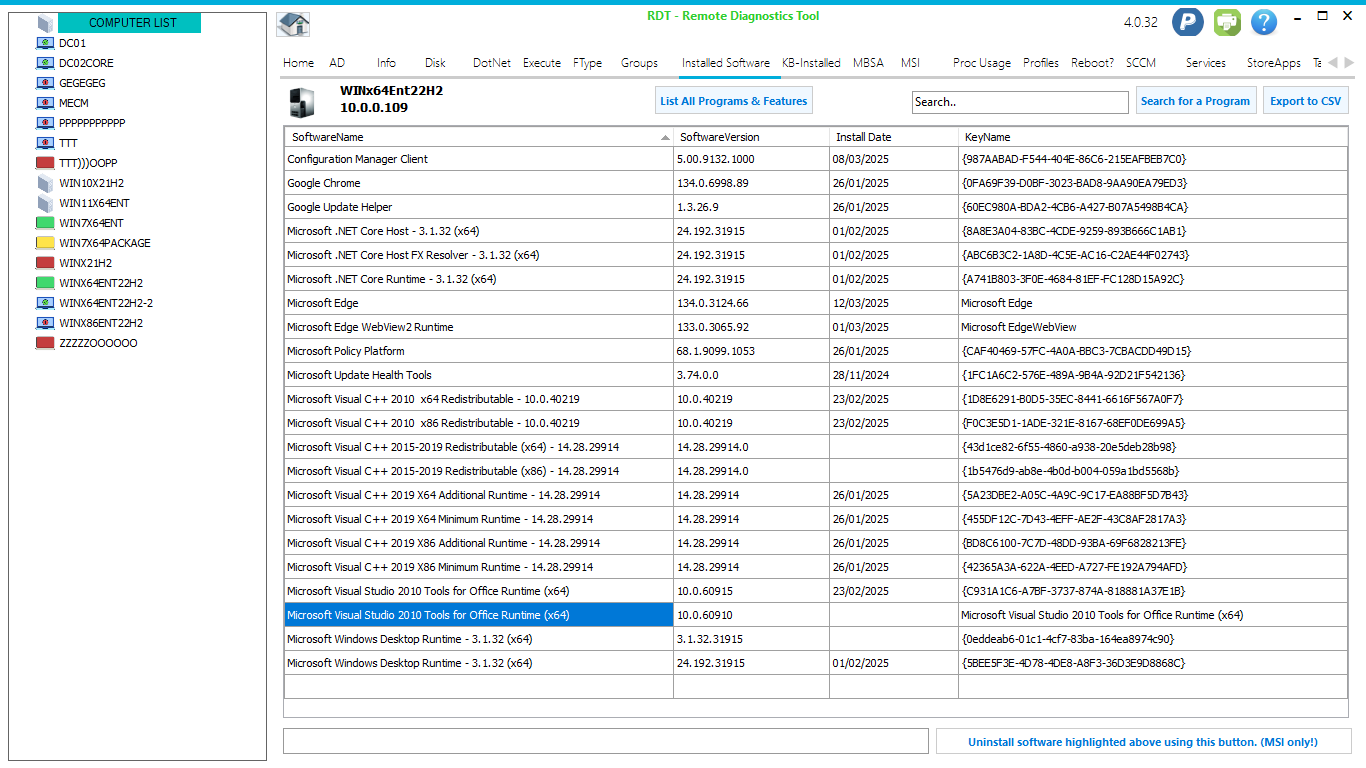

Programs and Features Report

Screen8

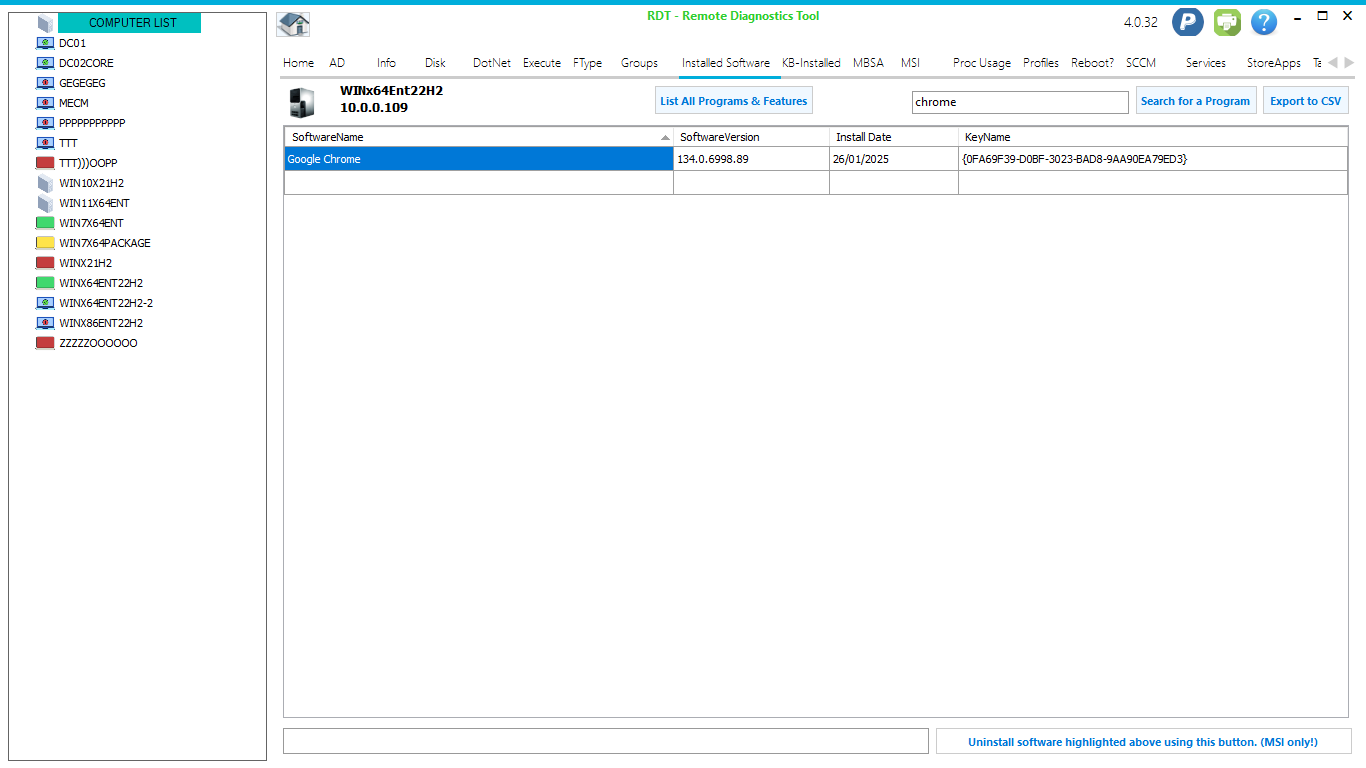

Search for a specific Program

Screen8

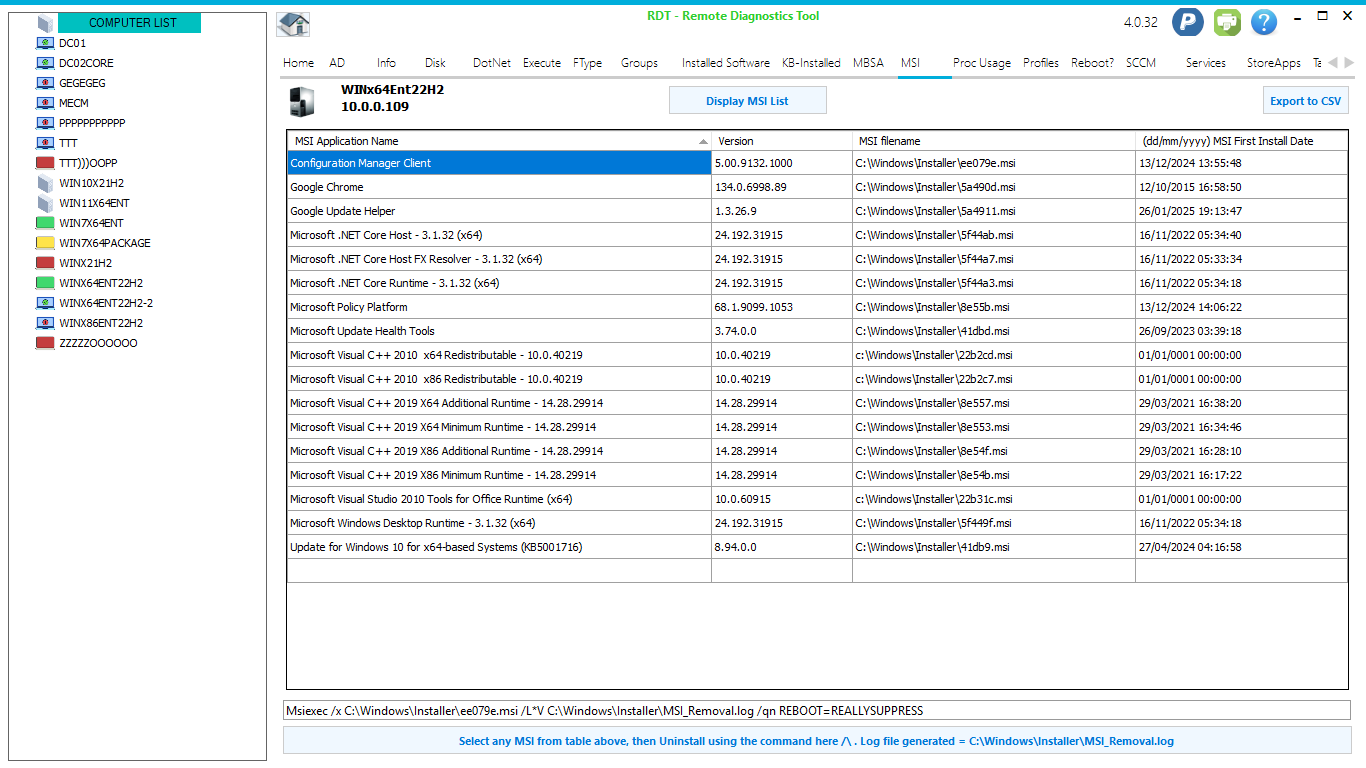

MSI List - Date Installed Report

Screen10

DotNet Core Runtime & DotNet Framework Versions Report

Screen10

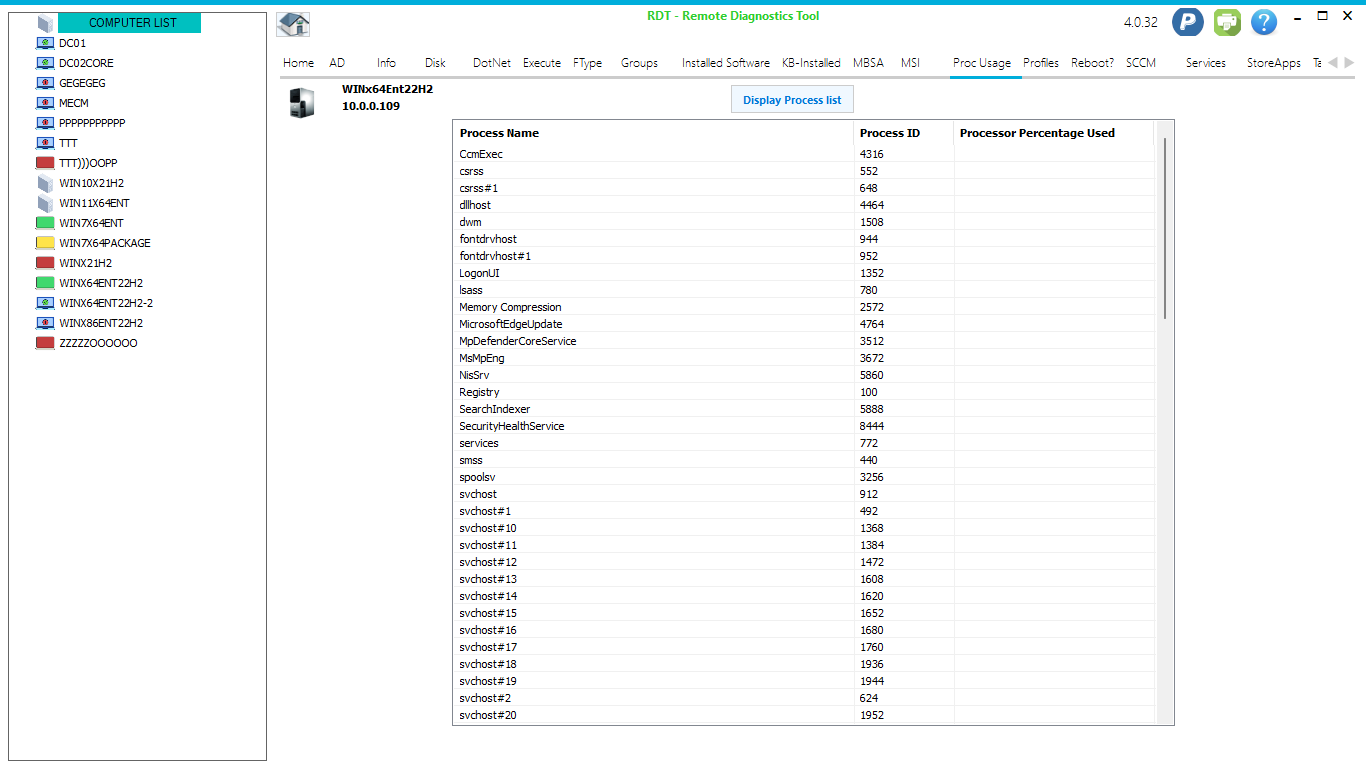

Processor Usage Report

Screen9

Profile Sizes and Deletion

Screen32

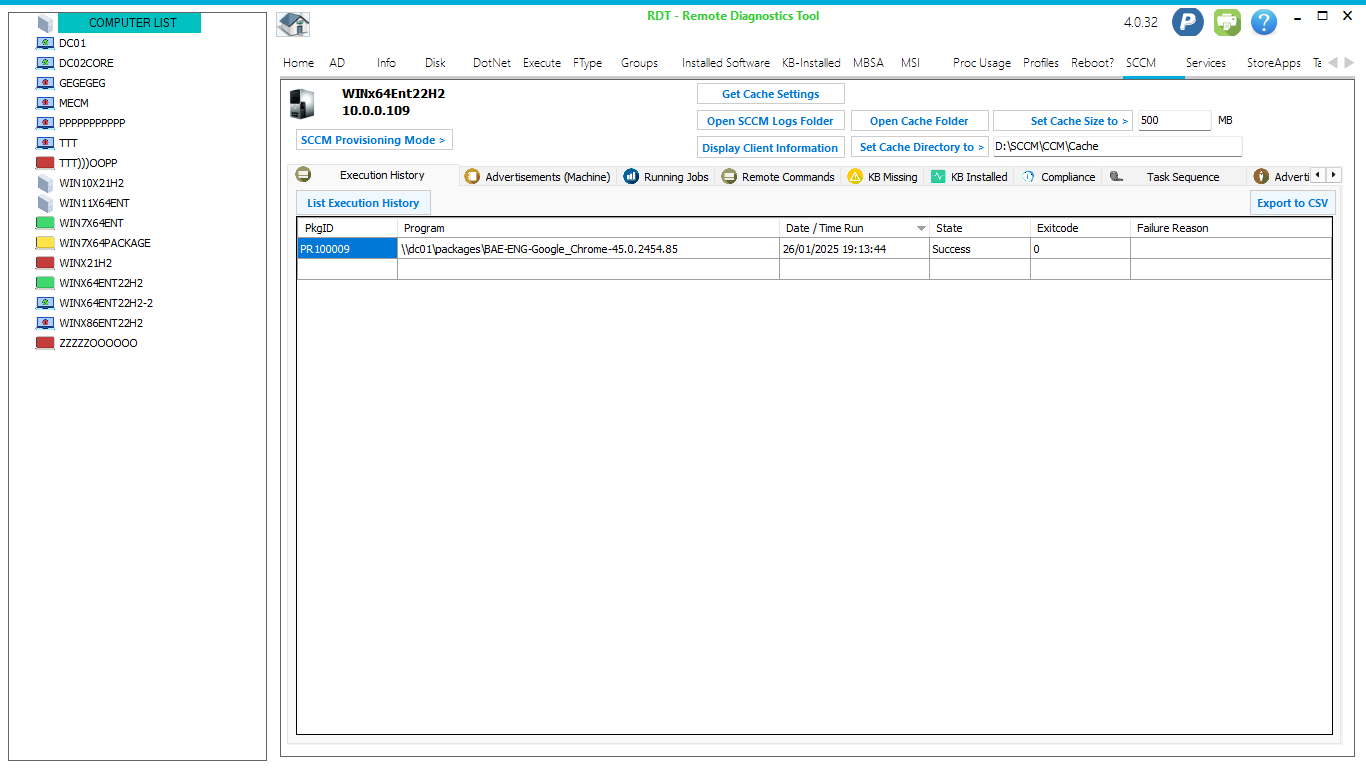

SCCM Execution History Report

Screen11

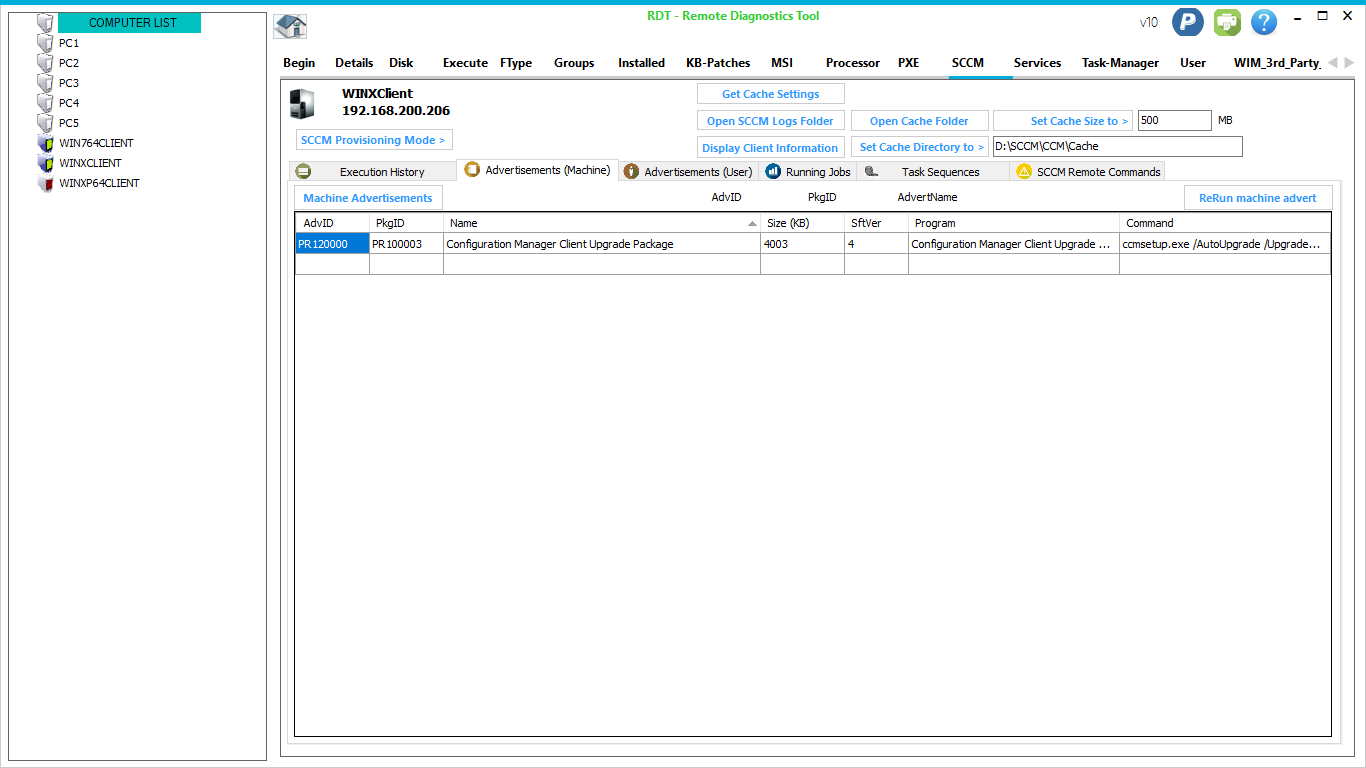

SCCM Advertisements Report (machine and user)

Screen12

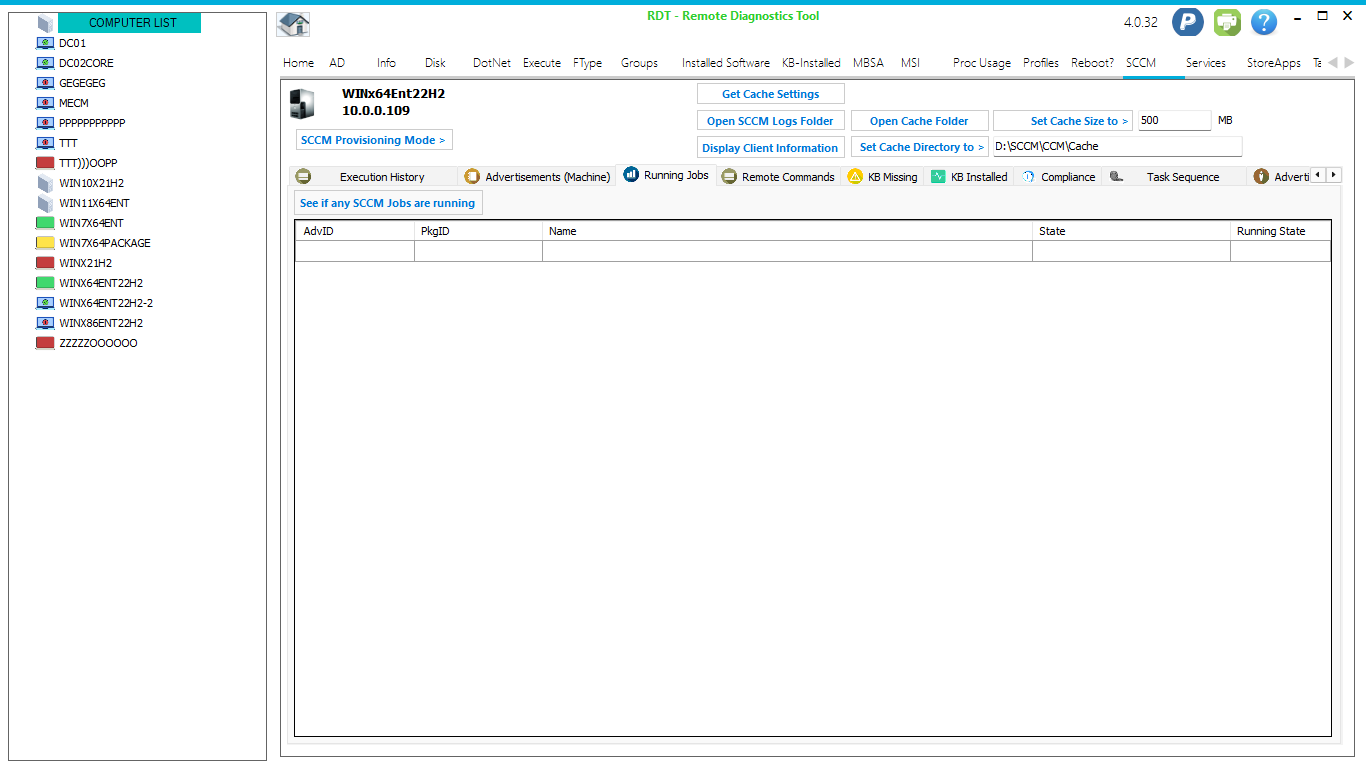

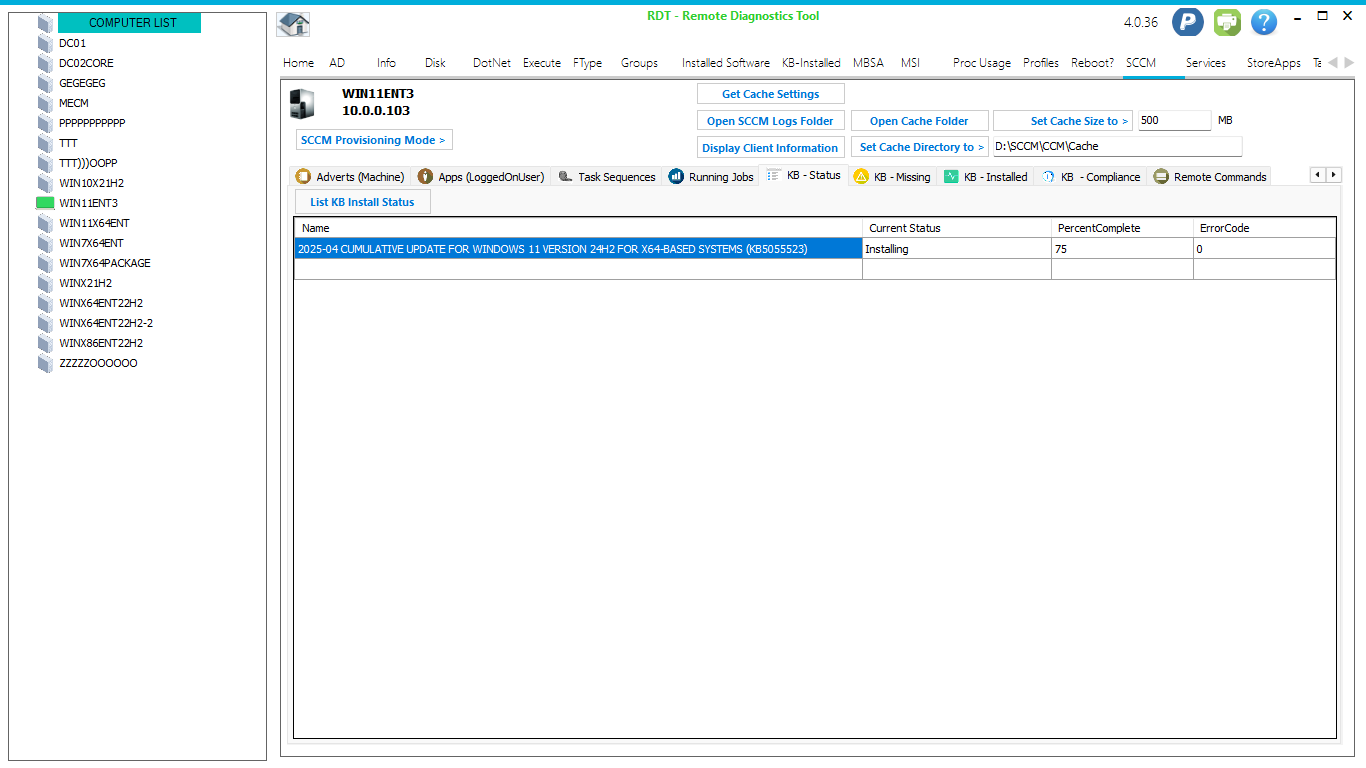

SCCM Running Jobs Report

Screen13

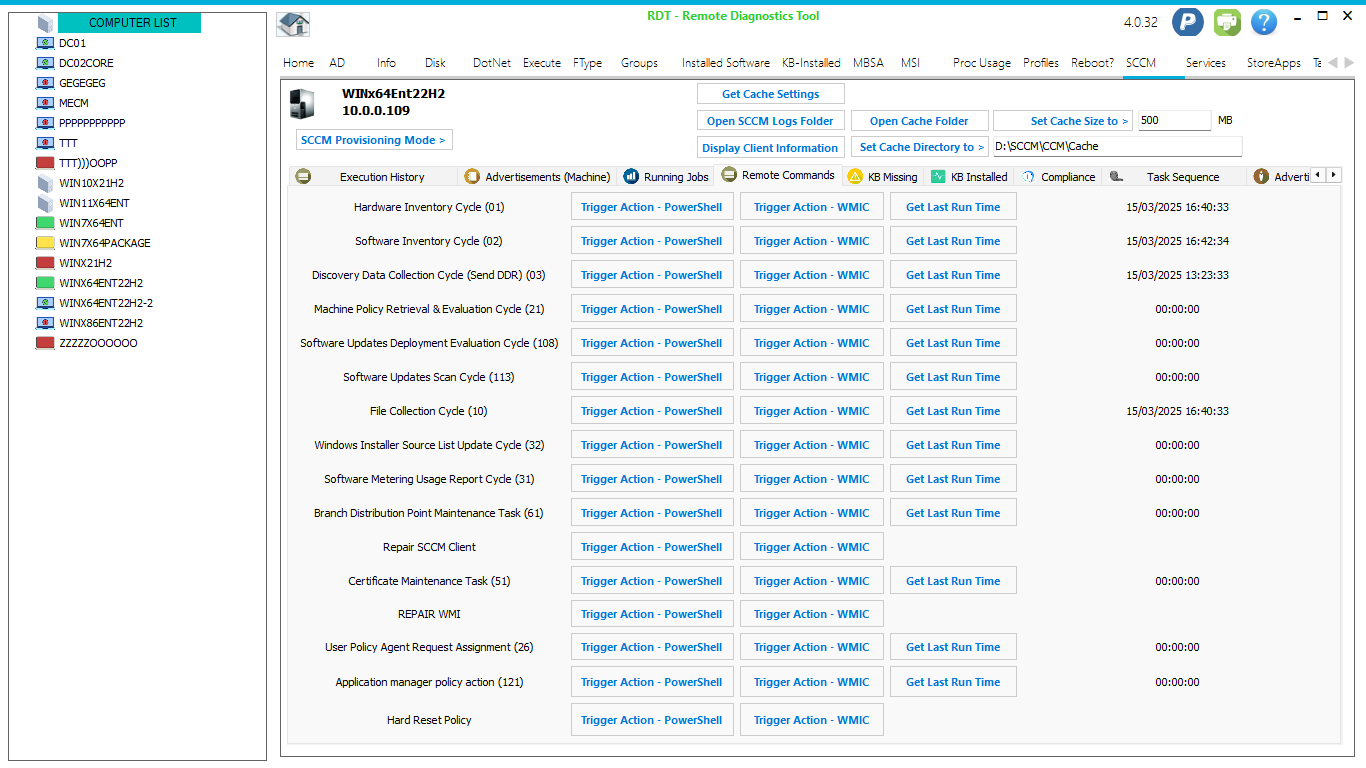

SCCM Client Tools

Screen14

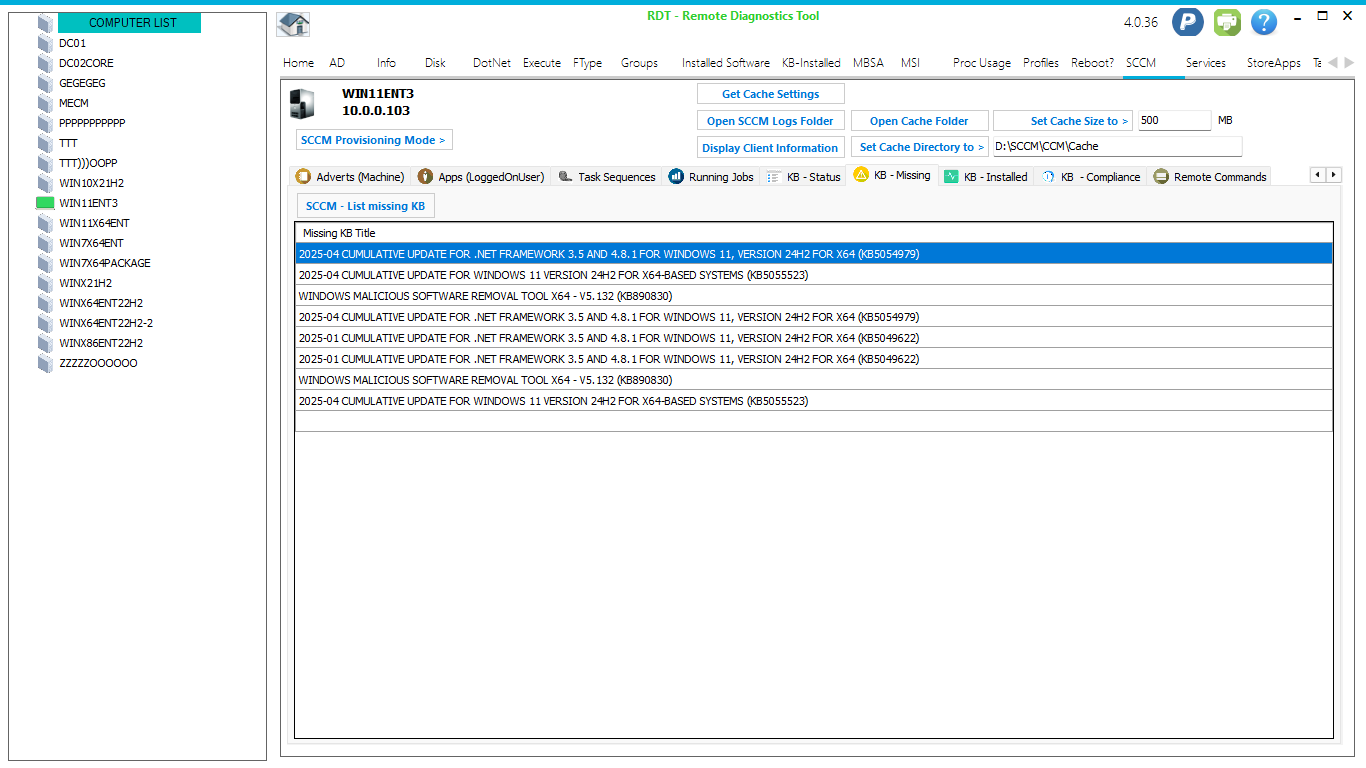

SCCM KB-Missing

Screen15

SCCM Compliance Checker

Screen15

Services Report / Control

Screen15

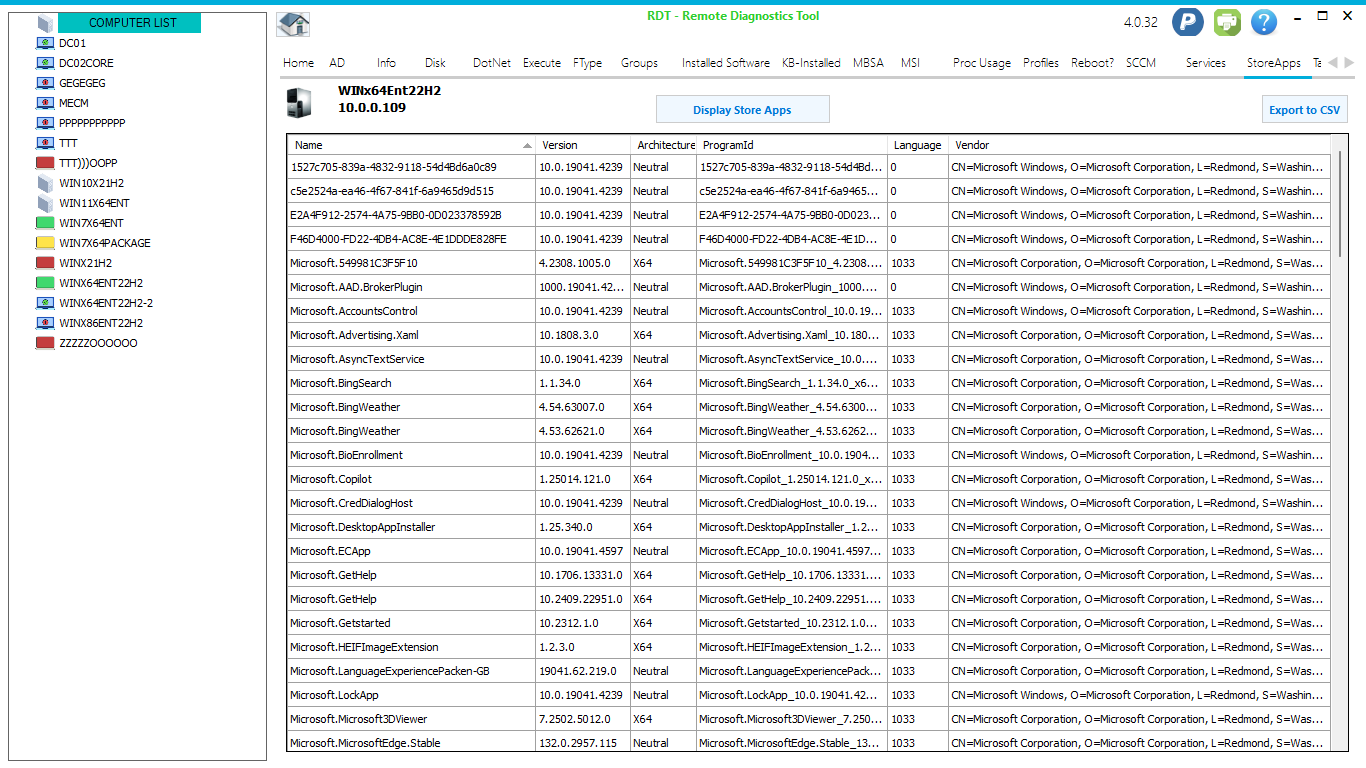

Store Apps Report

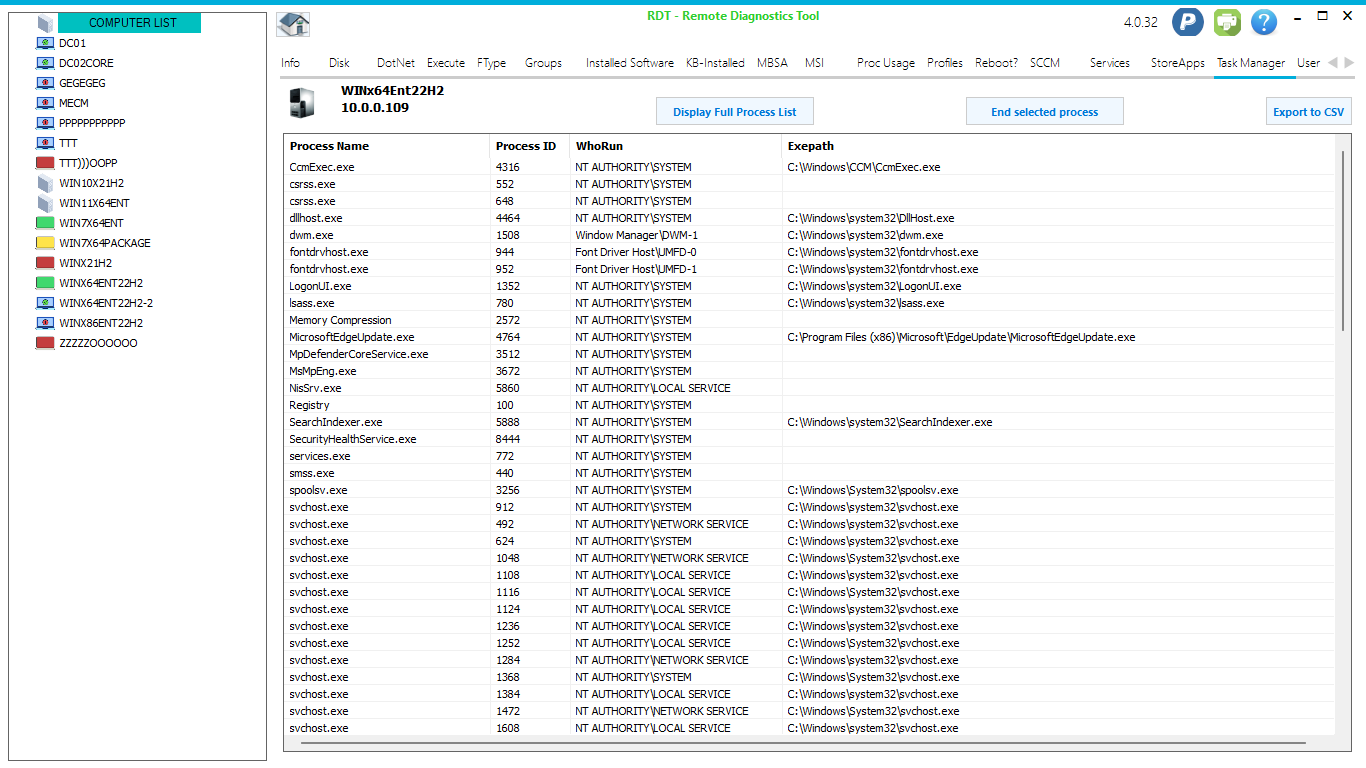

Full Process Report

Screen16

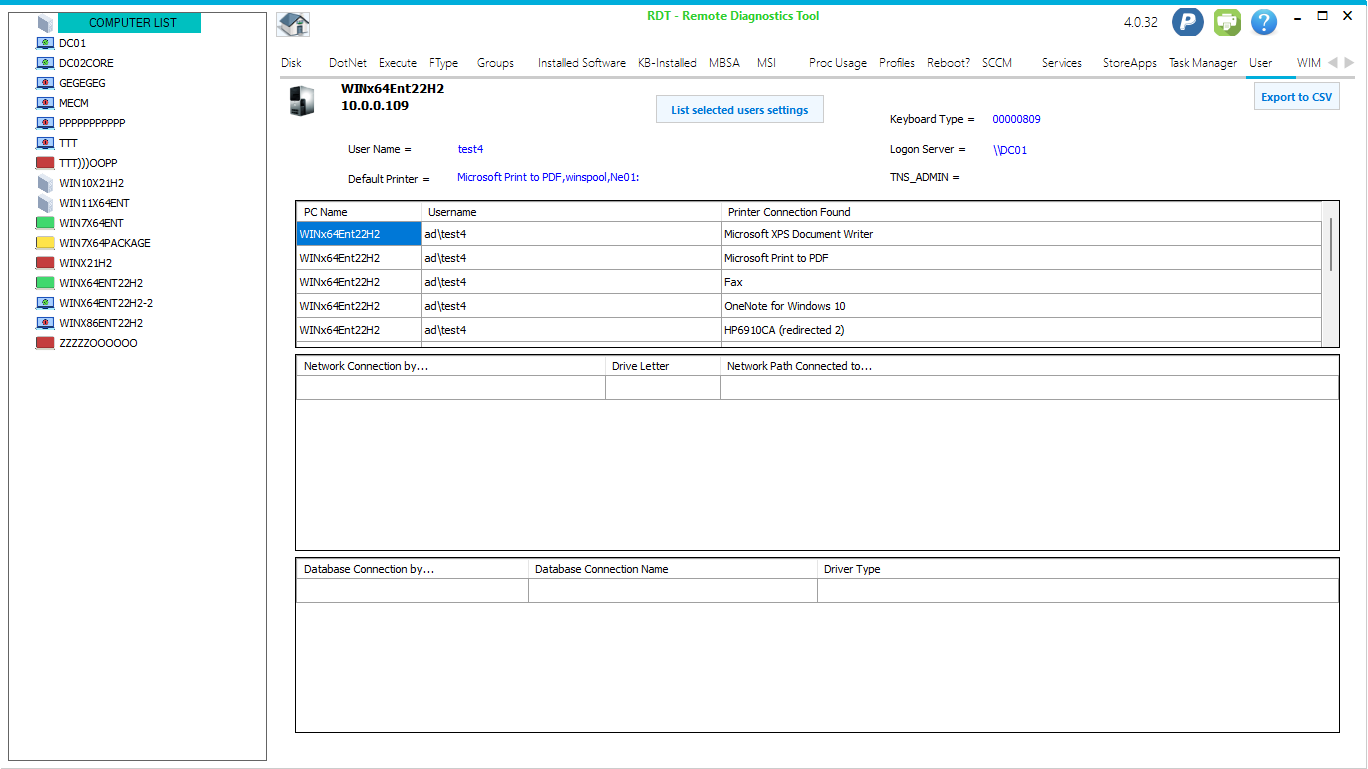

User Settings Report

Screen17

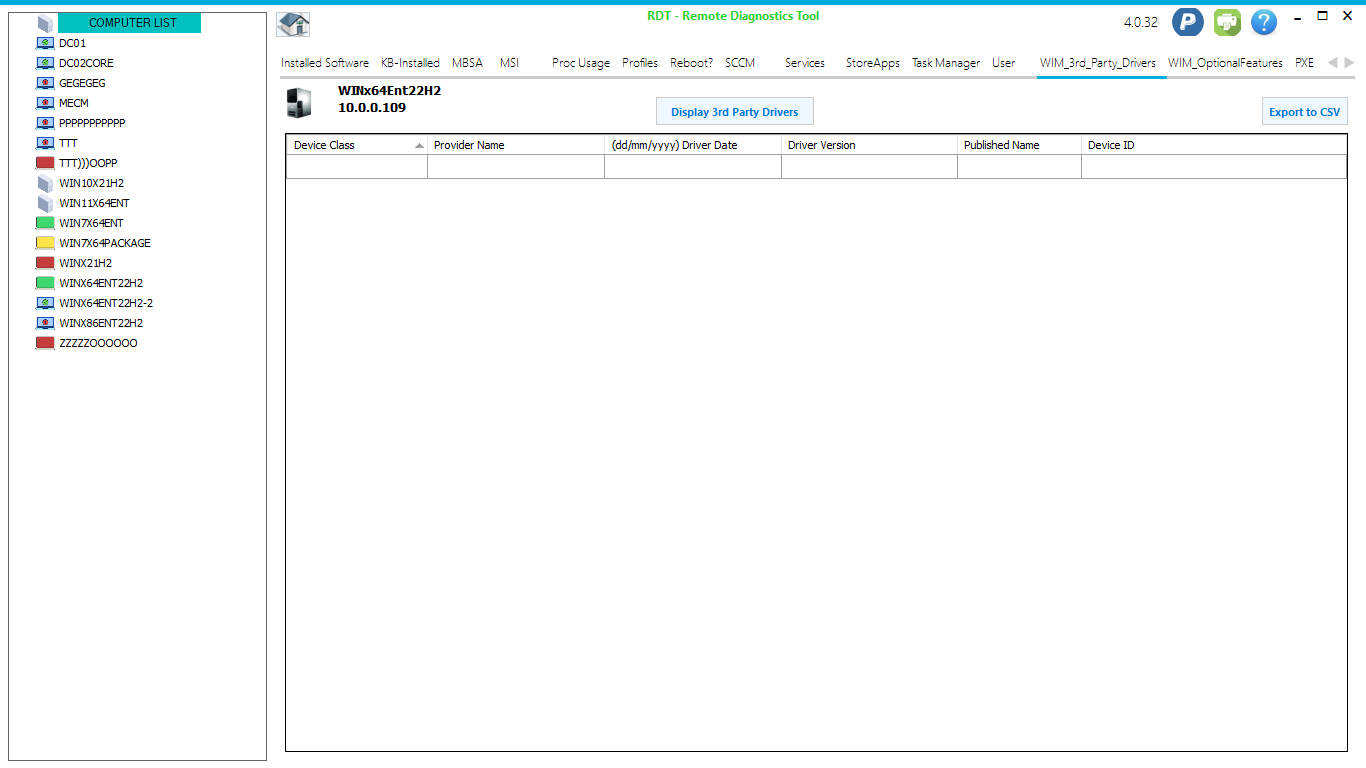

WIM - 3rd Party Drivers List

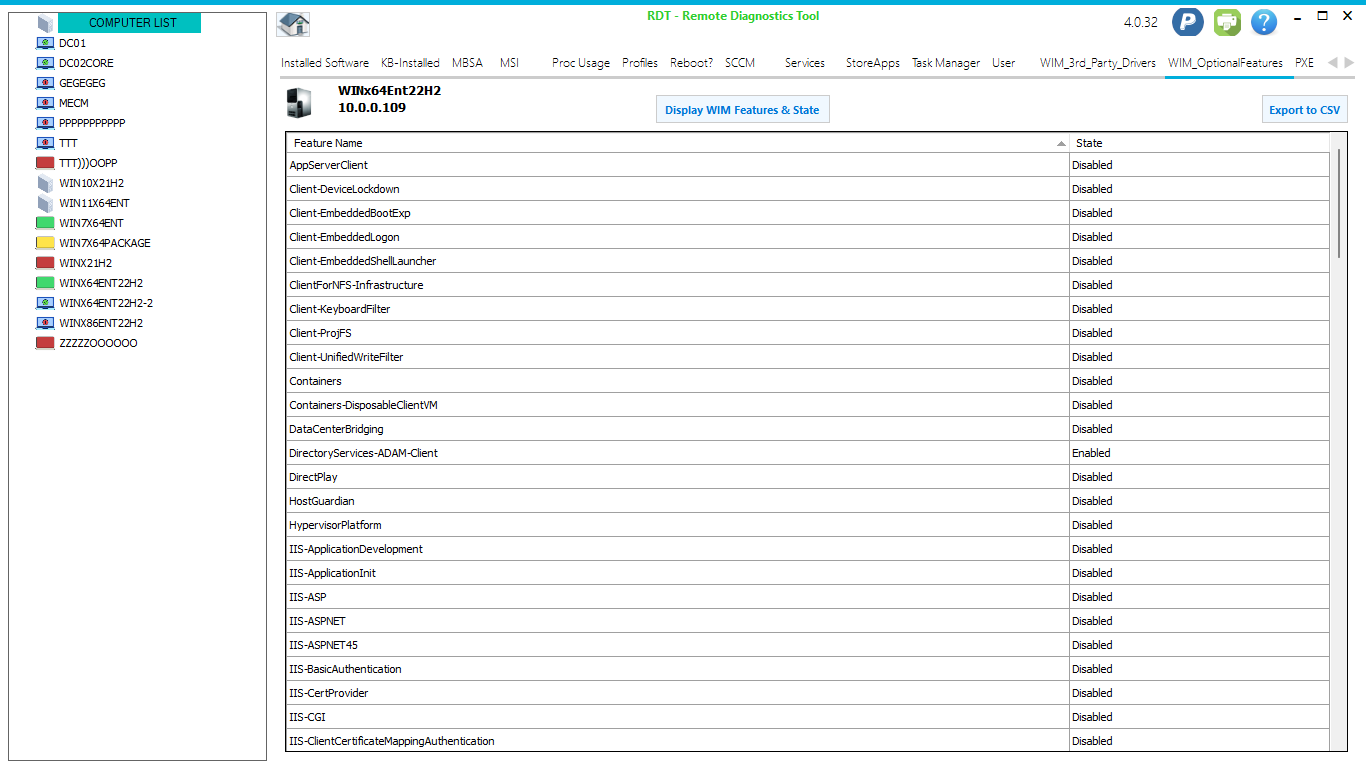

WIM - Optional Features List

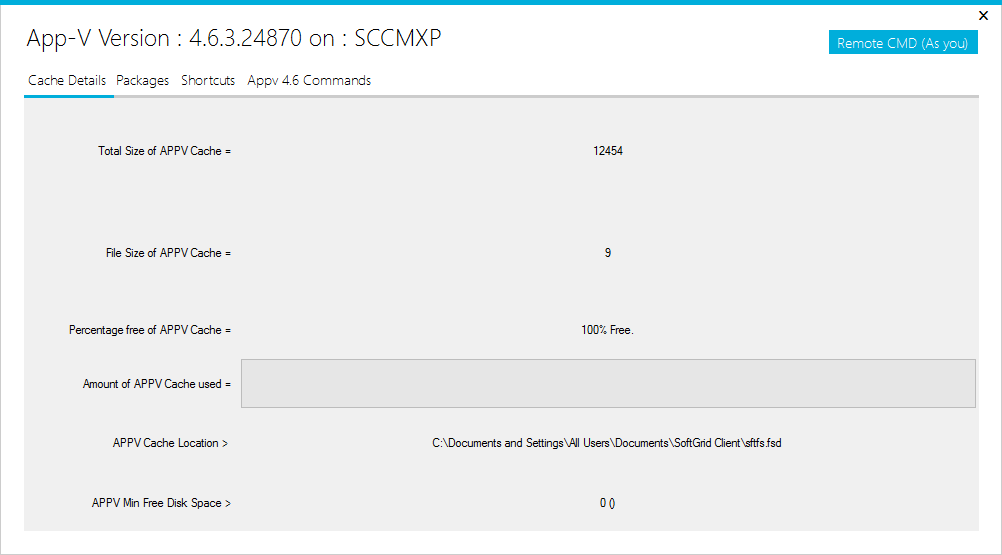

APP-V 4.x Console Report

Screen19

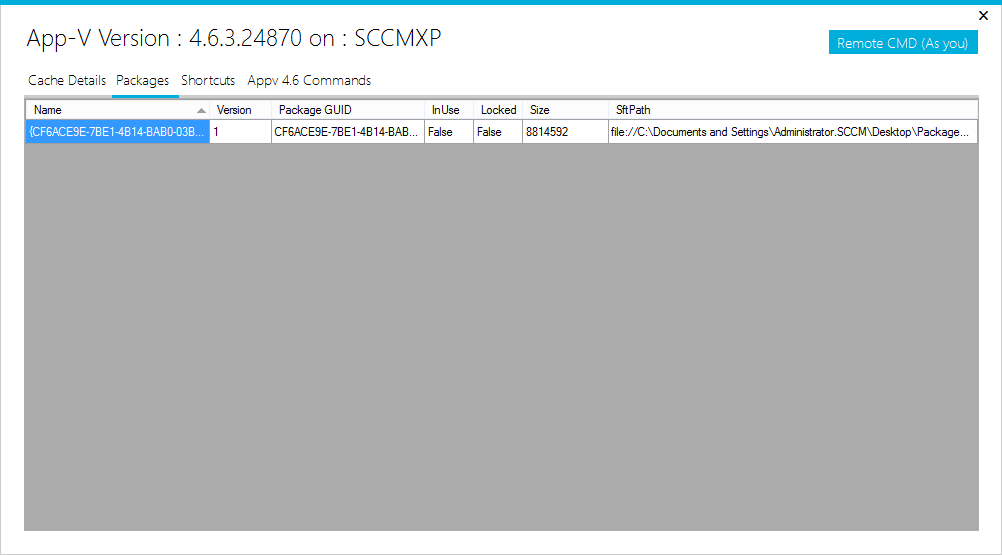

APP-V 4.x Package Report

Screen20

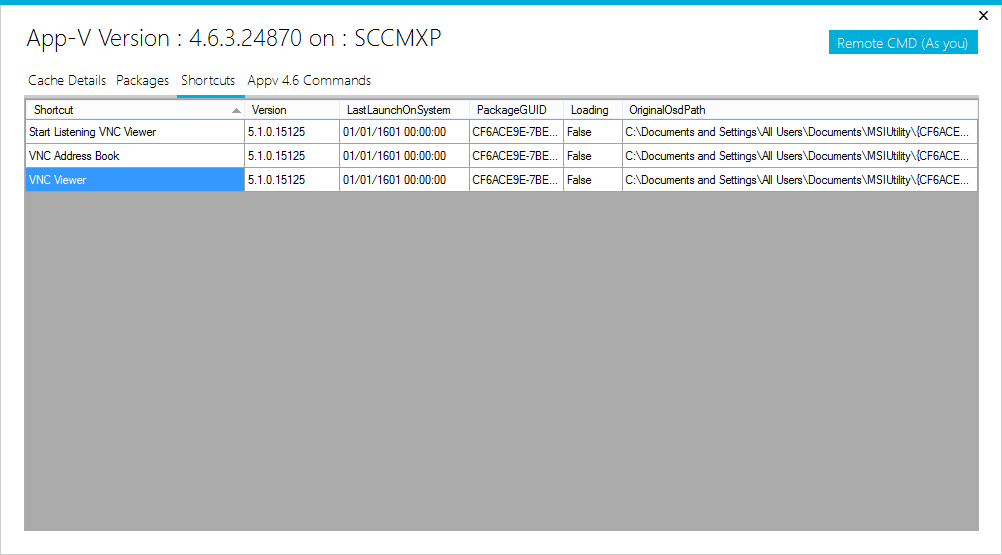

APP-V 4.x Shortcuts Report

Screen21

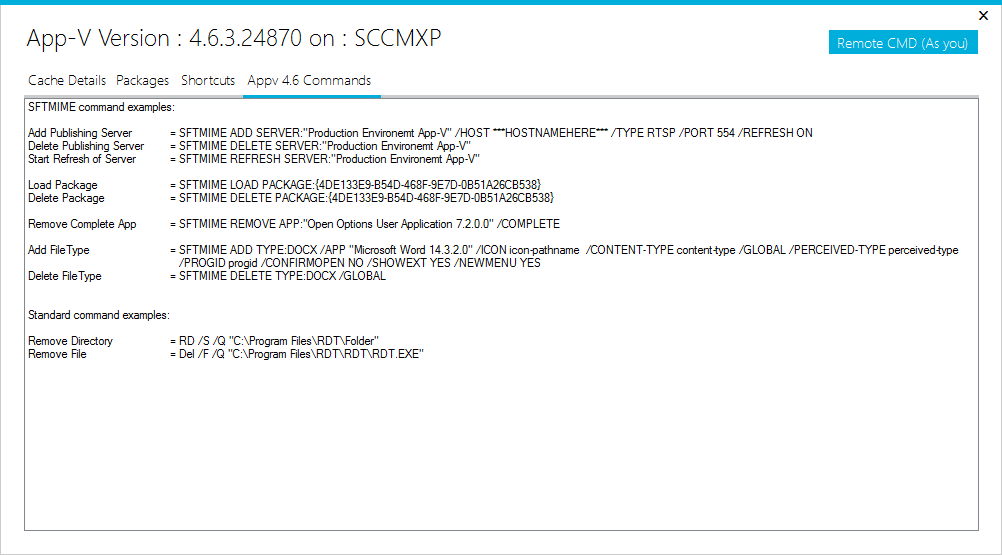

APP-V 4.x Remote Control Panel

Screen22

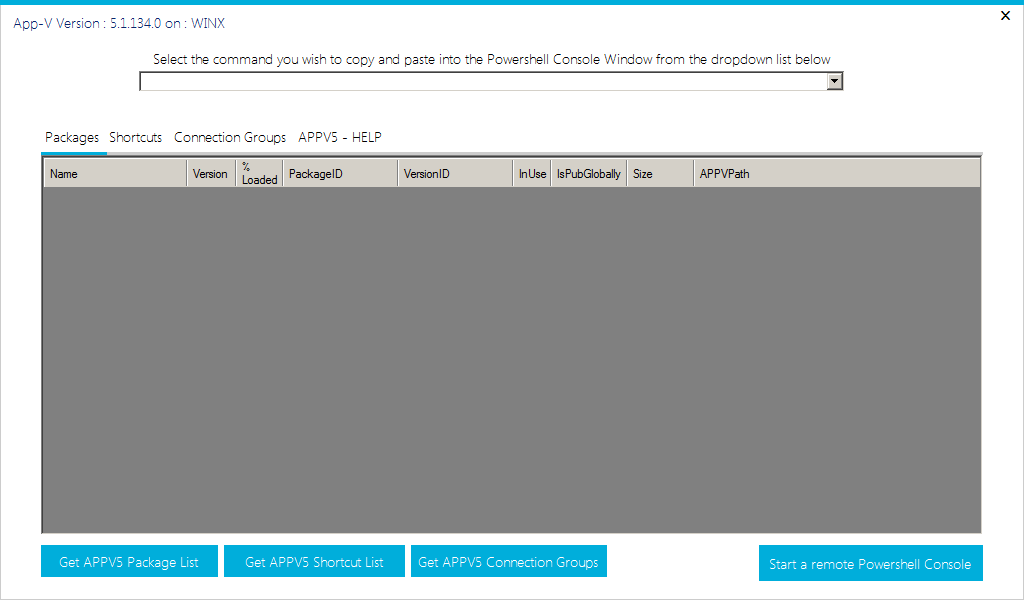

APP-V 5.x Remote Control Panel

Screen23

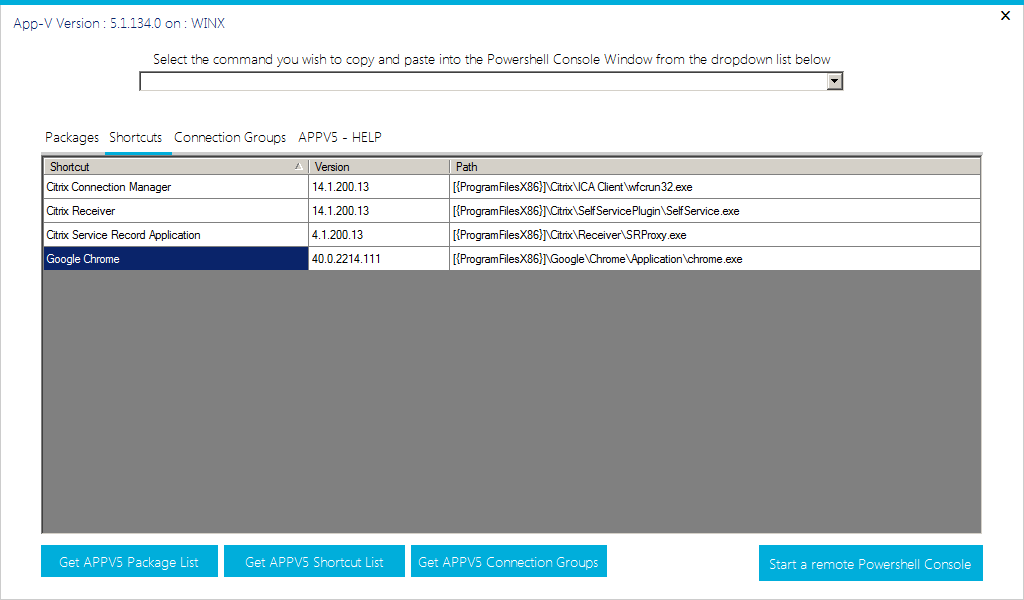

APP-V 5.x Shortcut Report

Screen23

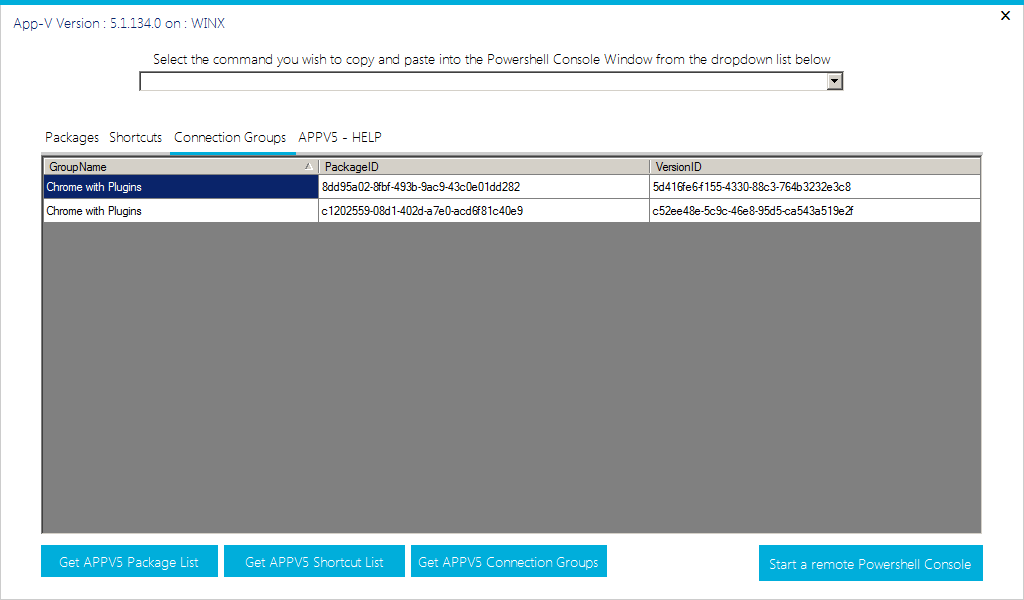

APP-V 5.x Connection Groups Report

Screen23

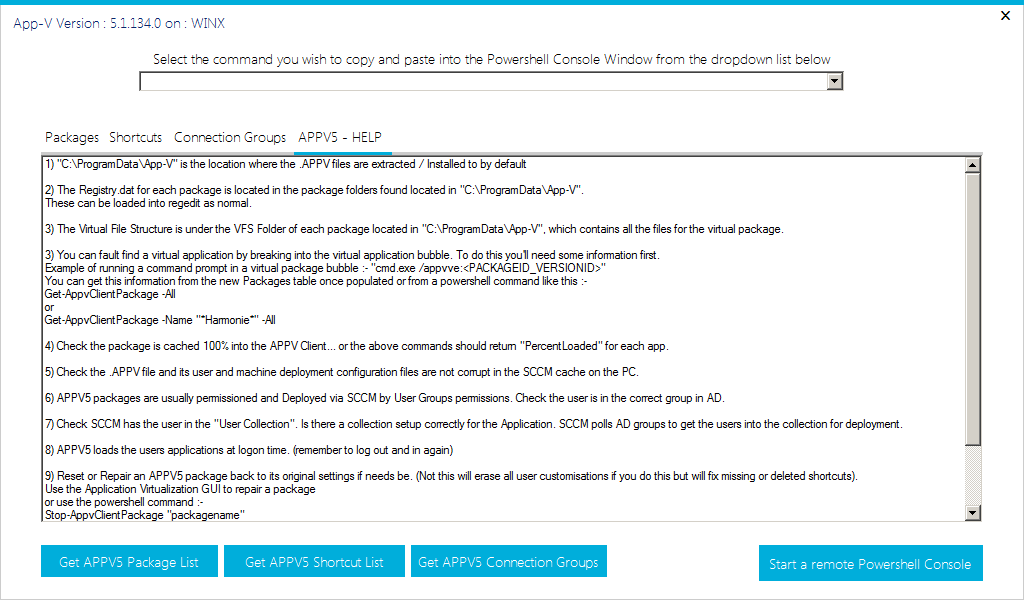

APP-V 5.x Help Panel

Screen23

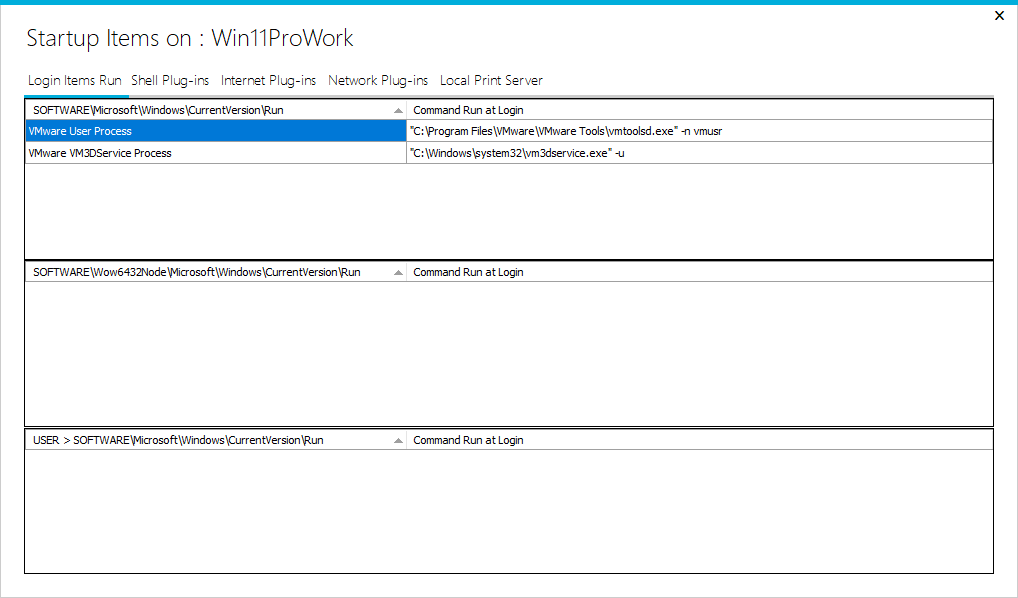

Startup Items Report

Screen24

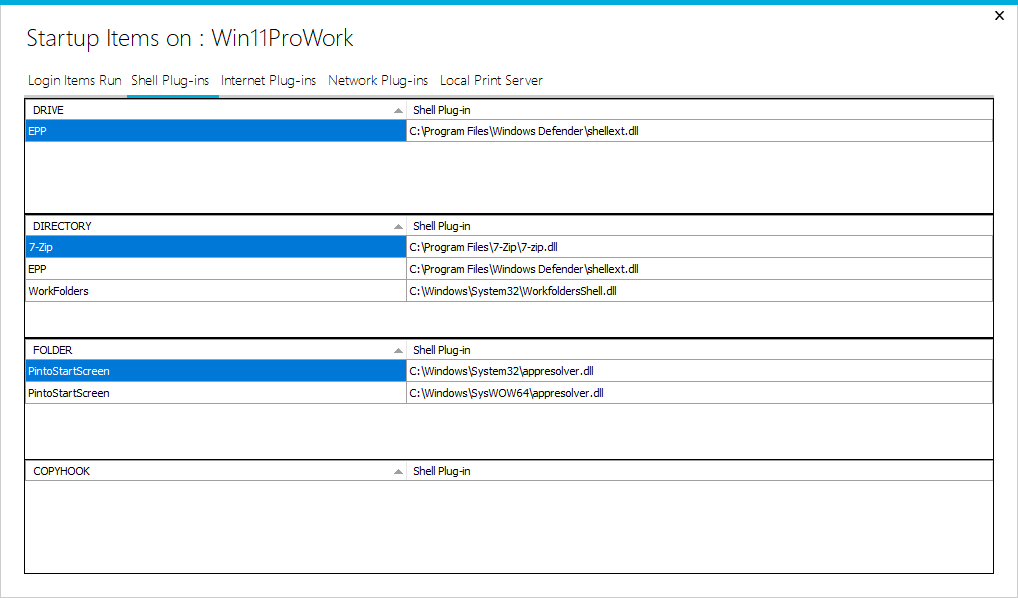

Explorer Shell Plug-ins Report

Screen25

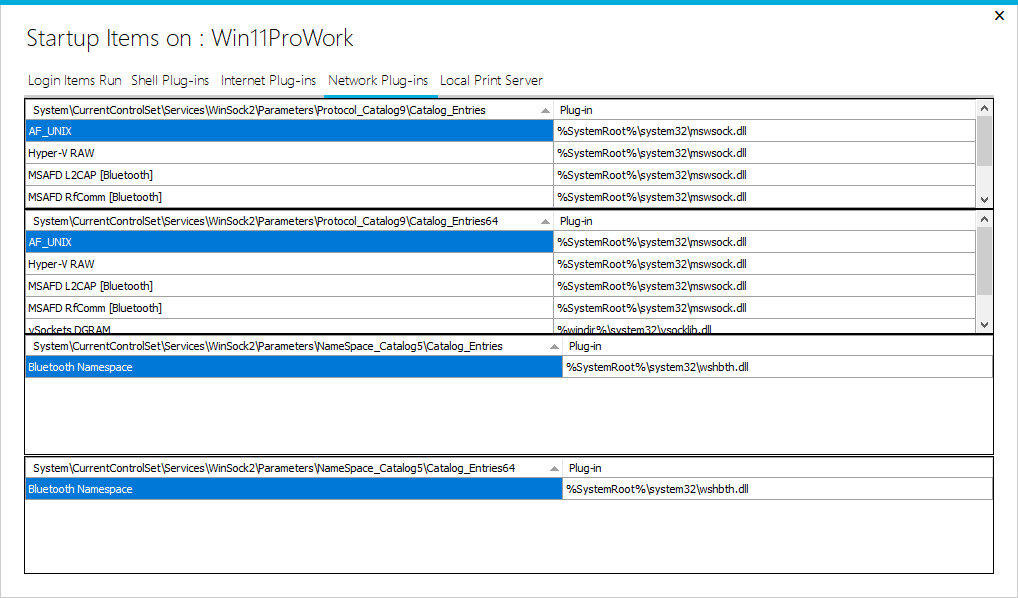

Network Plug-ins Report

Screen26

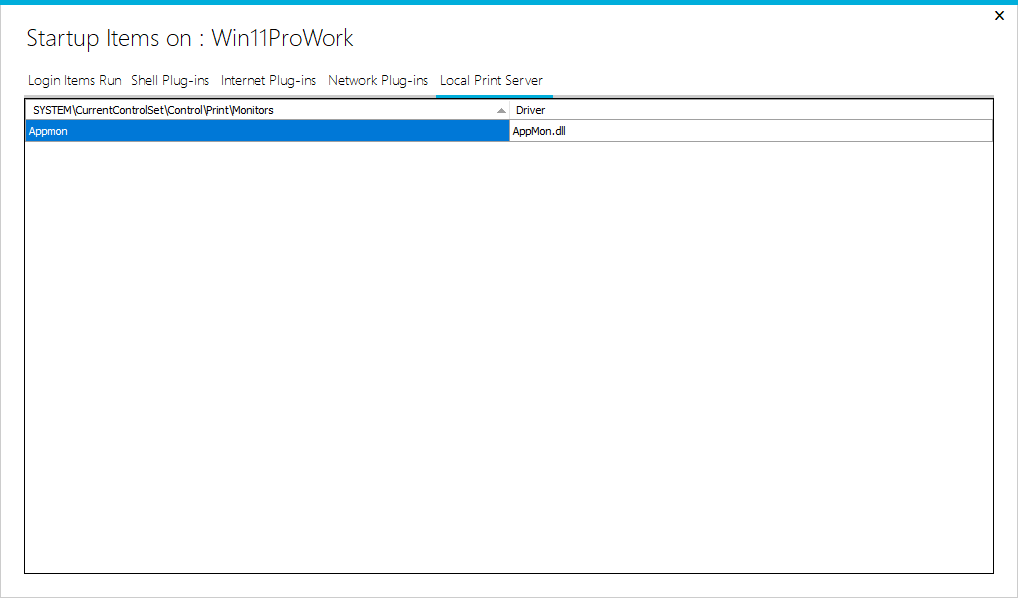

Local Server Printer Report

Screen27

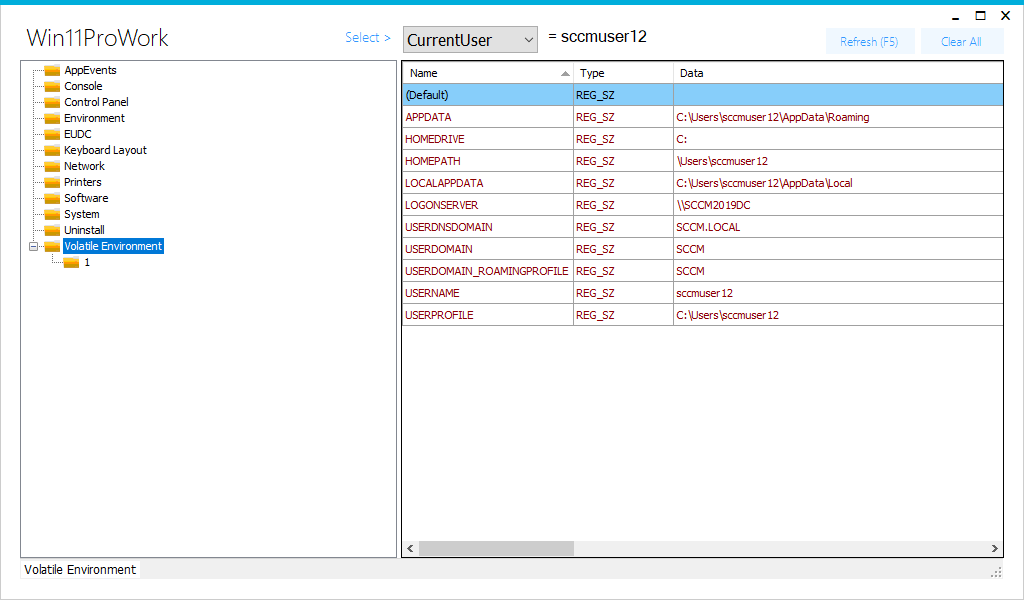

FAST - WMI Based - Remote Registry Editor (logged on user or machine)

Screen28

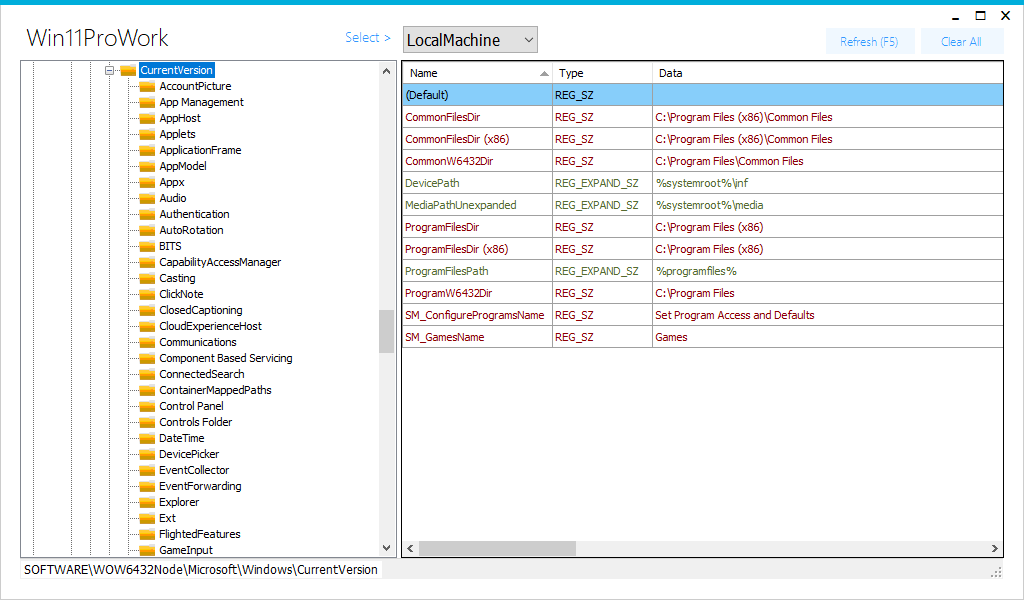

FAST - WMI Based - Remote Registry Editor (logged on user or machine)

Screen29



Revision Changes

Version 4.0.34= Added MACAddress detection to the Info “Nic” section for the adapter in use. Added BIOS Serial (Machine Serial) detection on “Bios” section.

Version 4.0.33 = Fixed "Helpdesk Number" and "Helpdesk Details" not being saved under the PC name correctly. Also retreived correctly when connected to a PC.

Version 4.0.32 = Updated PC / Connection Icons and fixed blank icon issue. Added “Display AUDIO info” button to Info tab. Added HPBIOS settings button to Info tab.

Version 4.0.31 = Fixed Ping and Initial connection slowness. This was down to a VB.NET memory leak with the Microsoft “Network.Ping” function.
Version 4.0.30 = Added “SCCM Client Tools” PowerShell trigger buttons as WMIC is being discontinued and could be malicious (according to M$)
Version 4.0.29 = Added SCCM Compliance Checker tab – see policy and if its compliant!
Version 4.0.28 = Added SCCM Missing KB tab to detect KB patches missing or not installed through SCCM / WSUS.
Added SCCM Installed KB tab to detect KB patches that have installed successfully through SCCM / WSUS.
Added Reboot? Tab to try and detect if a pc needs a reboot or not (Work in progress) but first registry check seems ok so far.

Version 4.0.27 = Fixed security issue in RDT-Registy button. Fixed KB-Installed ordering. New-Feature KB-Missing tab where you can detect missing KB fixes and patches missing from your PC to keep it up-to date.
Version 4.0.26 = Fixed "DOTNET" connection security level to 6 - packet.privacy. Fixed Windows Updates date now returned is correct and can be exported out to a csv file and filtered to latest date etc. Fixed a routine that wasn't exiting properly on the APPV detect button.
Version 4.0.25 = Added MBSA tab, any remote PC can be security scanned using the MBSA from Microsoft to see if it conforms to baseline patch status and application patches. This tool needs the file Scan-UpdatesOffline.zip which can be downloaded from the RDT website.
Version 4.0.24 = Added "File Version Finder" button to the start page, any file with a version can be detected on a remote pc.
Version 4.0.23 = Fixed issue on "groups" tab where "domain group" not being removed from "local group" properly.
Version 4.0.22 = Fixed Tab switching issue. Added "multi profile selection & deletion" on profiles tab. Added Icons to right click menu.
Re-arranged so app fits full screen better with certain tabs.
Version 4.0.21 = Added .NET tab where you can accurately detect CORE and Framework versions (x86 and x64) on a remote PC.
Version 4.0.20 = Added older "domain\user" detection back into connection gathering to aid in finding the cause of blank "domain\user" being given as a result in some very hit and miss instances.
Version 4.0.19 = 1) Added "Shaddow Desktop" button for remote viewing of Users desktop (If the user accepts the connection!)
Version 4.0.18 = 1) Added Add PCs from file to Computer's list. 2) Added Search for program on Installed Programs and features tab.
Version 4.0.17 = Added Active Directory tab - (Read-only) operation of users / computers / groups and group members.
Version 4.0.16 = Added Windows 11 support, fixed Microsoft registry screwup about "ProductName" reg key in Details Tab.
Version 4.0.15 = Added Profiles Tab for Christine. Profile sizes can be got and profiles deleted as you would if you were in system>profiles.
Version 4.0.14 = Added "Clear Computers List" right click menu option for Ian.
Version 4.0.13 = Added "StoreApps" tab with detection for Microsoft Store Apps and MSIX packages.
Version 4.0.12 = 1) Fixed - Package Execute (RunAs) account was not functioning with a restricted logged on user. Fixed WINRM configuration if not
Connected to a domain and setup via Policies.
Version 4.0.11 = 1) Fixed - Package not deleted off of remote pc after Execute via WMI button (manual checks).
Version 4.0.10 = 1) New PowerShell Invoke command button added to start page. 2) New Install routines on Execute tab (PowerShell driven).
3) Dropped the need for all third-party executables (Remcom and paexec) are now no longer needed. 4) Dropdown server list now remembers.
5) Fixed create local user button. (Password length and complexity has changed in windows. 6) Changed helpdesk save details to be per computer.
7) Removed VNC tab as it wasn't working correctly.
Version 4.0.09 = 1) Missed this release number.
Version 4..008 = 1) New 3rd party Drivers tab which lists additional installed drivers on the WIM. 2) New WIM-Optional Features tab with current state.
Version 4.0.07 = 1) Updated Patches tab with Remote KB uninstall button for Windows 7, Windows 8 and Windows 10 Computers. (DISM based).
Version 4.0.06 = 1) New "Computer List". New "Right click" Add/Delete/Connect Items. ("Computer list" is now remembered next launch).
Version 4.0.05 = 1) Fixed What Logon-Server button. Fixed User Tab detections. Added APPV5 Detection help and new detection buttons.
Version 4.0.04 = 1) Product unlocked for everyone - FREE fully functional.
Version 4.0.03 = 1) Fully functional 30-day trial offered.
Version 4.0.02 = 1) GUI changed to Metro Interface.
Version 4.0.01 = 1) Added AD user buttons on Home page for Email Address / Phone numbers / mobile Number.
Version 4.0.00 = 1) Public Release Version supporting any PC with Dot-Net 4 installed.
